1 Room Heat Transfer Kit: 150mm Axial Fan (small duct run 6m or under)
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $219.00.$199.00Current price is: $199.00.
Heat Transfer Kit Options
Premium kits are powered by a Silent inline fan (a larger unit with incorporated sound insulation). All kits are supplied with a high quality inline fan with a European motor. A thermostat can be purchased as an accessory with any of our kits.
Motor Capacity: 358 m3/hr (99.44 l/s)
Motor Type: Axial
Kit Includes:

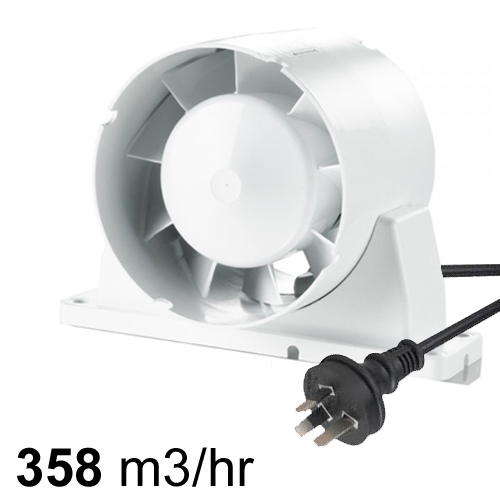

1x 150mm Axial inline fan with lead and plug.(EXVUVKO3 EALEADL21MB) Click Here to view fan. (Includes installed lead & plug for DIY installation)
1 x 6m length of R 1.0 Rated 150mm Insulated ducting(EDI01506M10) Fanco Kits use thicker R1.0 insulated ducting than many of the alternatives on the market
2 x 150mm Vent Cone Ceiling Diffuser (EVFLC150) Click to view vent Specs
1 x Hanging tape(EATAPEH)
1 x Duct Tape(EATAPED)
View full technical specs further down the page

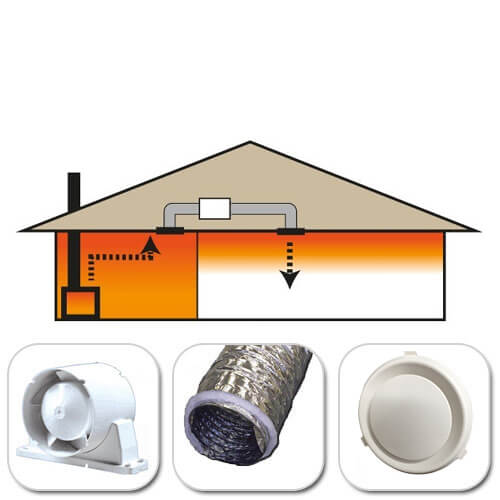

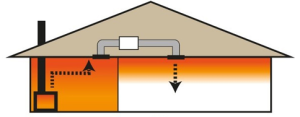

This Heat Transfer Kit powered by a high quality Fanco European made inline fan is designed to move warm (or cold) air from one room to another room in your home. This is ideally used where one room becomes excessively heated, while other rooms require more heating. The Heat Transfer Kit does this by using a ceiling vent in a particularly warm room and using a fan to transfer it, through insulated ducting, to a vent that opens onto the room that requires further warming. The Heat Transfer Kit provides an energy and cost-efficient way of moving heat around your home.
About this kit
This small 1-1 room kit is suitable for 1-1 room installation which requires 6m of ducting or less. The reason being the fan included in this kit is a basic axial motor. It is not the most suitable when dealing with long duct runs with bends/twists etc. For this reason we would not recommend adding extra ducting to this kit, instead it would be advisable to upgrade to one of our larger kits. Similarly if your heat transfer kit requires installation with twists and bends you may also look to upgrade to the larger kit. To get the most from this kit it is important that the duct run is as short, straight and tight as possible. To give you a rough idea of performance relative to duct length view the below table:
| No Duct | 2m Duct | 4m Duct | 6m Duct | 9m Duct | 12m Duct | |
|---|---|---|---|---|---|---|
| VKO 150 | 358 m3/hr | 270 m3/hr | 250 m3/hr | 200 m3/hr | 180 m3/hr | 150 m3/hr |
*These figures are all based on duct-work of the same diameter as the fan and are approximate calculations. This kit is supplied with 6m of ducting.
Installation
The kits can be installed by the client as it is relatively easy to install. Some handyman skills are required to make holes in the plaster, etc. An electrician is needed to provide power to the fan (or a power point) and a switch, also to install a thermostat if required. The electrician can also install the system at the same time.
The fan is provided with a lead and plug, so it can be plugged in to an available power point which an electrician could install independent of the system installation.
An optional thermostat is available (see accessories below) BUT NOTE THAT AN ELECTRICIAN WILL THEN BE REQUIRED TO INSTALL IT.
| Manufacturer | Fanco |
|---|---|
| Number of Rooms | 1 – 1 Room |
| Installation | Installing this product with hardwired accessories will likely require the services of a licensed electrician, This fan comes with a lead and plug for connection to a power socket |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
