1 Room Heat Transfer Kit: 150mm Mixed Flow Fan (long ducting)
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $399.00.$349.00Current price is: $349.00.
Heat Transfer Kit Options
Premium kits are powered by a Silent inline fan (a larger unit with incorporated sound insulation). All kits are supplied with a high quality inline fan with a European motor. A thermostat can be purchased as an accessory with any of our kits.
Motor Capacity: 520 m3/hr (144.44 l/s)
Motor Type: Mixflow
Kit Includes:
1x TT 150mm Inline Fan with Power Cord and Speed Switch(EXVUTT150RV) Click to view fan Specs
2 x 6m length of R 1.0 Rated 150mm Insulated ducting(EDI01506M10) Fanco Kits use thicker R1.0 insulated ducting than many of the alternatives on the market.
2 x 150mm Vent Cone Ceiling Diffuser (EVFLC150)Click to view vent Specs
1 x Hanging tape(EATAPEH)
1 x Duct tape(EATAPED)
View full technical specs further down the page
This is a small kit used to transfer air from one room to another with extra ducting and a Mixed Flow In Line Fan.

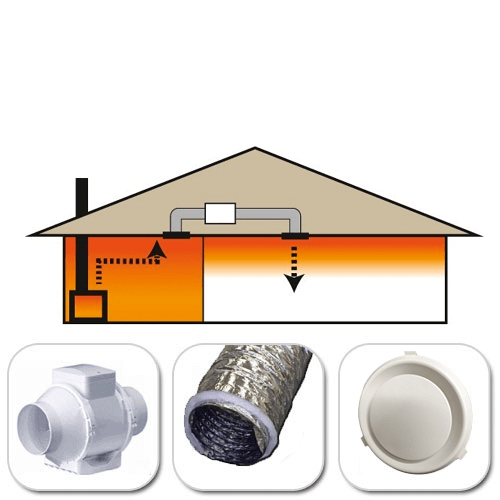

This European made Heat Transfer Kit is designed to move warm (or cold) air from one room to another room in your home. This is ideally used where one room becomes excessively heated, while other rooms require more heating. The Heat Transfer Kit does this by using a ceiling vent in a particularly warm room and using a fan to transfer it, through insulated ducting, to a vent that opens onto the room that requires further warming. This Heat Transfer Kit comes with extra long ducting to reach a room that is up to 12 metres away. The Heat Transfer Kit provides an energy and cost-efficient way of moving heat around your home.
Note:
- a wall switch or thermostat (see accessories) can be used to turn the kit on
- the vent in the destination room should be placed as far away from the door as possible
If extra duct, vents or joiners are needed we have a range of heat transfer parts.
If you would like to view our general Heat Transfer Kit installation guide click here
About this kit
This kit is designed to service 1-1 room; however it is provided with a more suitable fan to cope with a longer duct run (12m of ducting). This mixflow will do a better job of retaining its capacity over a duct run. To give you a rough idea of performance relative to duct length view the below table:
| No Duct | 6m Duct | 12m Duct | 20m Duct | 30m Duct | 40m Duct | |
|---|---|---|---|---|---|---|
| TT Mixflow 150 | 520 m3/hr | 450 m3/hr | 400 m3/hr | 300 m3/hr | 250 m3/hr | 200 m3/hr |
*These figures are all based on duct-work of the same diameter as the fan and are approximate calculations. This kit is provided with 12m of ducting. Figures are based on the fan wired to the high speed.
Installation
The kits can be installed by the client as it is relatively easy to install. Some handyman skills are required to make holes in the plaster, etc. An electrician is needed to provide power to the fan (or a power point) and a switch, also to install a thermostat if required. The electrician can also install the system at the same time.
The fan is provided with a lead and plug, so it can be plugged in to an available power point which an electrician could install independent of the system installation.
An optional thermostat is available (see accessories below) BUT NOTE THAT AN ELECTRICIAN WILL THEN BE REQUIRED TO INSTALL IT. This fan cannot be wired to a speed controller.
| Manufacturer | Fanco |
|---|---|
| Number of Rooms | 1 – 1 Room |
| Installation | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
