3 Room Heat Transfer Kit: 150mm Metal Centrifugal Inline Fan
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $649.00.$599.00Current price is: $599.00.
Heat Transfer Kit Options
Premium kits are powered by a Silent inline fan (a larger unit with incorporated sound insulation). All kits are supplied with a high quality inline fan with a European motor. A thermostat can be purchased as an accessory with any of our kits.
Motor Capacity: 580 m3/hr (161.11 l/s)
Motor Type: Metal Centrifugal
Kit Includes:
1 x VKM 150mm Centrifugal Inline Fan(EXVUV150B EALEADL21MB) Click to view fan Specs (Includes installed lead & plug connected to high speed, which will need to be removed if purchasing additional speed controller accessory and hard wired instead)
3 x 6m length of 150mm R 1.0 Rated Insulated ducting(EDI01506M10)
2 x BTO 150x150x150(EAB30666F)
4 x 150mm Vent Cone Ceiling Diffuser (EVFLC150)Click to view vent Specs
1 x Hanging tape(EATAPEH)
1 x Duct Tape(EATAPED)
View full technical specs further down the page

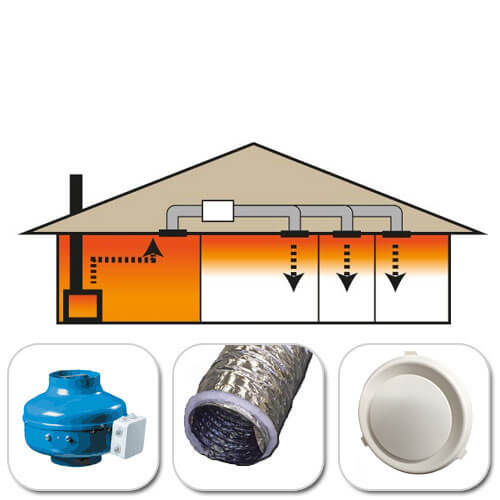

This is a 3 Room Heat Transfer Kit to transfer air to up to three destination rooms.
This European made Heat Transfer Kit is designed to move warm (or cold) air from one room to three other rooms in your home. This is ideally used where one room becomes excessively heated, while other rooms require more heating. The Heat Transfer Kit does this by using a ceiling vent in a particularly warm room and using a fan to transfer it, through insulated ducting, to a vent that opens onto the room that requires further warming. This kit comes with a centrifugal inline fan to ensure the effective movement of air through the longer lengths of ducting and BTO’s (splitters) that are needed to reach three rooms. The Heat Transfer Kit provides an energy and cost-efficient way of moving heat around your home.
Note:
- a wall switch or thermostat (see accessories) can be used to turn the kit on
- the vent in the destination room should be placed as far away from the door as possible
If extra duct, vents or joiners are needed we have a range of heat transfer parts.
If you would like to view our general Heat Transfer Kit installation guide click here
About this kit
This 1-3 kit is the same as above, however the fan supplied is a metal VKM centrifugal fan. This fan has a slightly higher capacity vs the plastic model (555 m3/hr vs 460 m3/hr). To give you a rough idea of performance relative to duct length view the below table:
| No Duct | 6m Duct | 12m Duct | 20m Duct | 30m Duct | 40m Duct | 50m Duct | |
|---|---|---|---|---|---|---|---|
| VKM Centrifugal 150 | 580 m3/hr | TBC | TBC | TBC | TBC | TBC | TBC |
*These figures are all based on duct-work of the same diameter as the fan and are approximate calculations. This kit is supplied with 18m of ducting.
The Centrifugal motors also have the added benefit that they can be speed controlled via a dimmer style switch. For this reason they are a popular choice for customers who would like to have more control of the speed.
Installation
The kits can be installed by the client as it is relatively easy to install. Some handyman skills are required to make holes in the plaster, etc. An electrician is needed to provide power to the fan (or a power point) and a switch, also to install a thermostat if required. The electrician can also install the system at the same time.
The fan is provided with a lead and plug, so it can be plugged in to an available power point which an electrician could install independent of the system installation.
An optional thermostat is available (see accessories below) BUT NOTE THAT AN ELECTRICIAN WILL THEN BE REQUIRED TO INSTALL IT.
| Manufacturer | Fanco |
|---|---|
| Installation | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Number of Rooms | 1 – 3 Rooms |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
