4 Room Heat Transfer Kit: 200mm Quiet Mixflow Inline Fan
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $969.00.$869.00Current price is: $869.00.
Heat Transfer Kit Options
Premium kits are powered by a Silent inline fan (a larger unit with incorporated sound insulation). All kits are supplied with a high quality inline fan with a European motor. A thermostat can be purchased as an accessory with any of our kits.
Motor Capacity: 1020 m3/hr (283.33 l/s)
Motor Type: Silent Mixflow
Kit Includes:

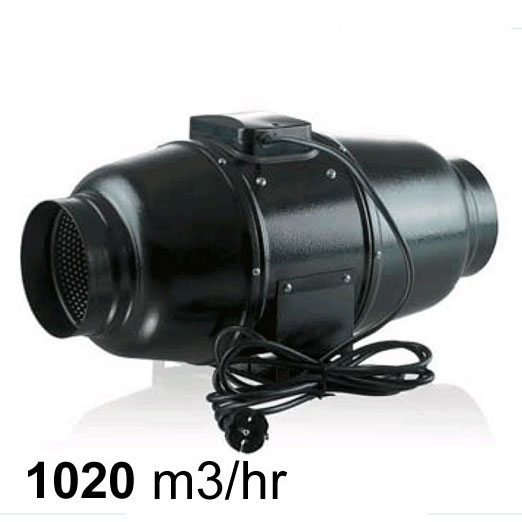

1 x TT Silent 200 Premium Mixflow Inline Fan(EXVUTTS200RV) Click to view fan Specs (Includes installed lead & plug and speed switch)

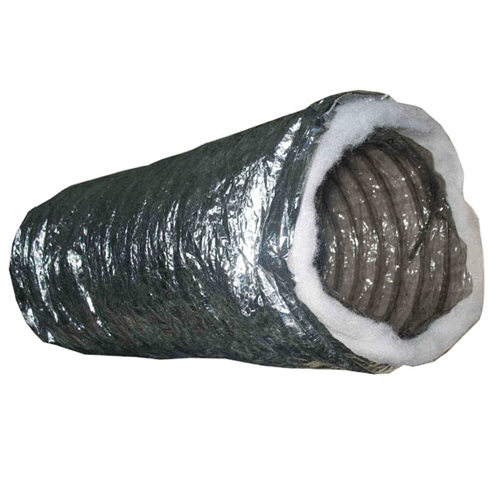

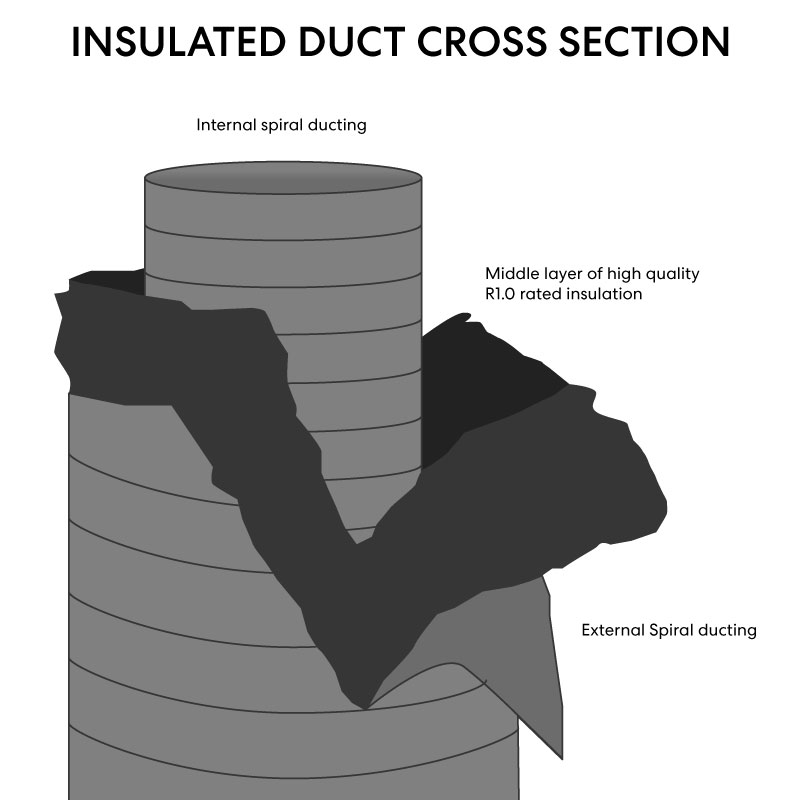

3 x 6m length of 150mm R 1.0 Rated Insulated ducting(EDI01506M10)
1 x 6m length of 200mm R 1.0 Rated Insulated ducting(EDI02006M10)

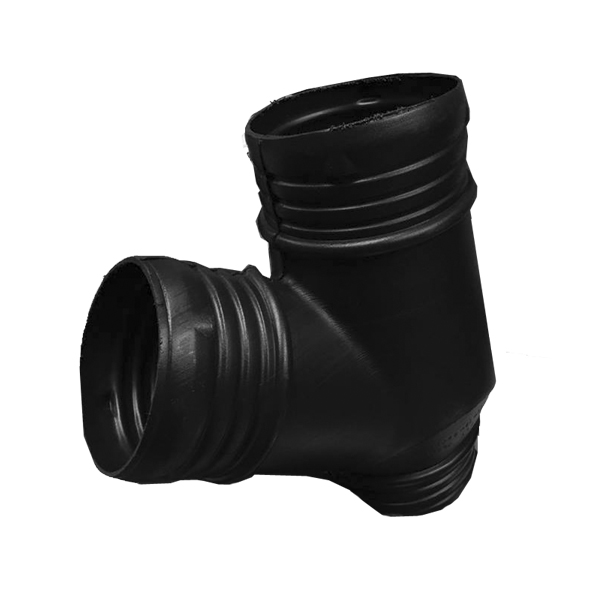

2 x BTO 150x150x150(EAB30666F)
1 x BTO 200x150x150(EAB30866F)
1 x Plastic 200mm Vent Cone Ceiling Diffuser (EVFLC200) Click to view vent specs
4 x Plastic 150mm Vent Cone Ceiling Diffuser (EVFLC150)Click to view vent Specs
1 x Hanging tape(EATAPEH)
1 x Duct Tape(EATAPED)
View full technical specs further down the page

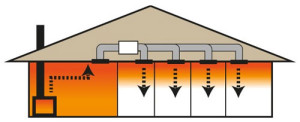

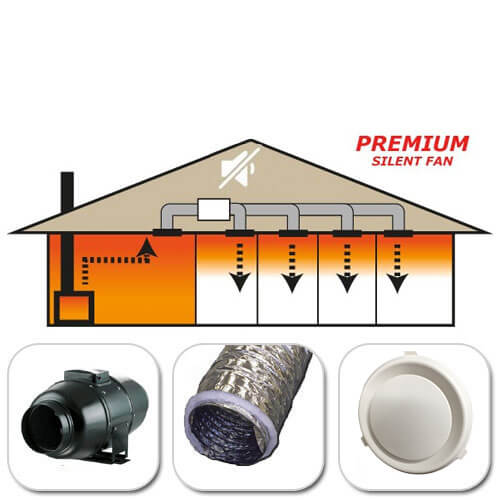

This is a 4 Room Heat Transfer Kit to transfer air to up to four destination rooms.
This European made Heat Transfer Kit is designed to move warm (or cold) air from one room to four other rooms in your home. This is ideally used where one room becomes excessively heated, while other rooms require more heating. The Heat Transfer Kit does this by using a ceiling vent in a particularly warm room and using a fan to transfer it, through insulated ducting, to a vent that opens onto the room that requires further warming. This kit comes with a mixflow inline fan to ensure the effective movement of air through the longer lengths of ducting and BTO’s (splitters) that are needed to reach four rooms. The Heat Transfer Kit provides an energy and cost-efficient way of moving heat around your home.
Note:
- a wall switch or thermostat (see accessories) can be used to turn the kit on
- the vent in the destination room should be placed as far away from the door as possible
If extra duct, vents or joiners are needed we have a range of heat transfer parts.
If you would like to view our general Heat Transfer Kit installation guide click here
About this kit

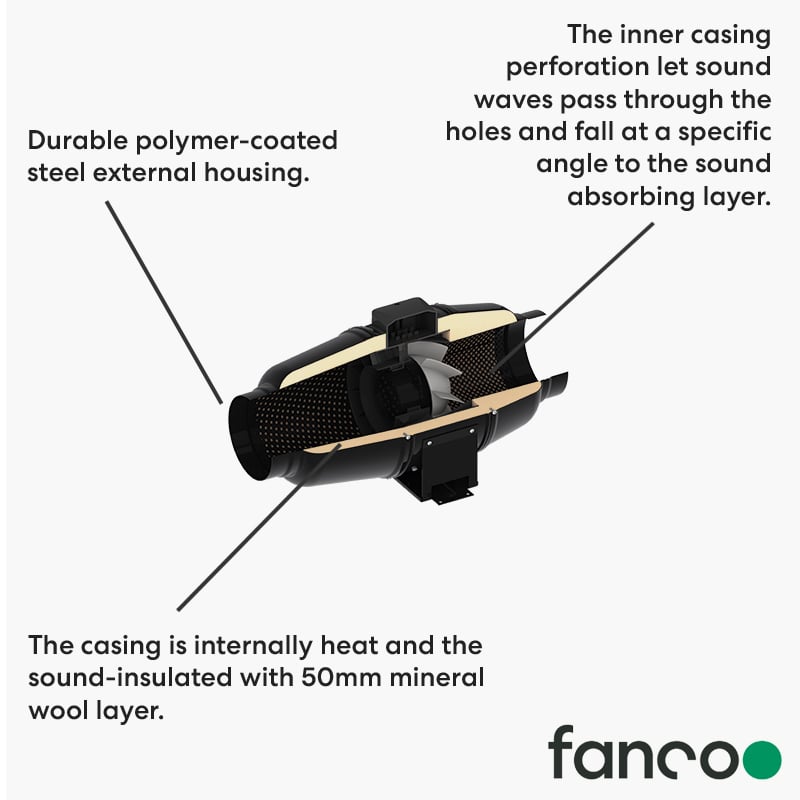

This kit is our Premium 1-4 room offering. The kit features the TT Silent inline fan in a large 200mm size. Despite the size of the motor this fan operates relatively quietly, below is a comparison of a TT Silent 200 fan vs a TT mixflow 200 and the centrifugal range:
TT Silent 200: Only 36db(A) (31 on lower speed)
TT Mixflow 200: 52db(A) (45 on lower speed)
VKM 200: 51db(A)
VK Plastic 200: 51db(A)
To give you a rough idea of performance relative to duct length view the below table:
| No Duct | 6m Duct | 12m Duct | 20m Duct | 30m Duct | 40m Duct | 50m Duct | |
|---|---|---|---|---|---|---|---|
| TT Silent 200 | 1020 m3/hr | 900 m3/hr | 750 m3/hr | 700 m3/hr | 600 m3/hr | 520 m3/hr | 500 m3/hr |
*These figures are all based on duct-work of the same diameter as the fan and are approximate calculations. This kit is supplied with 18m of ducting.
In summary this kit is a great solution if you are looking for something quiet and powerful.
Installation
The kits can be installed by the client as it is relatively easy to install. Some handyman skills are required to make holes in the plaster, etc. An electrician is needed to provide power to the fan (or a power point) and a switch, also to install a thermostat if required. The electrician can also install the system at the same time.
The fan is provided with a lead and plug, so it can be plugged in to an available power point which an electrician could install independent of the system installation.

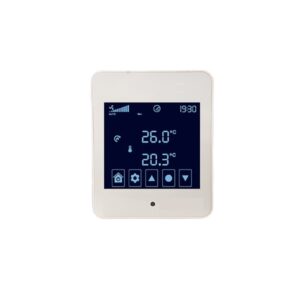

An optional thermostat is available (see accessories below) BUT NOTE THAT AN ELECTRICIAN WILL THEN BE REQUIRED TO INSTALL IT.
| Manufacturer | Fanco |
|---|---|
| Installation | This fan comes with a lead and plug for connection to a power socket |
| Number of Rooms | 1 – 4 Rooms |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
