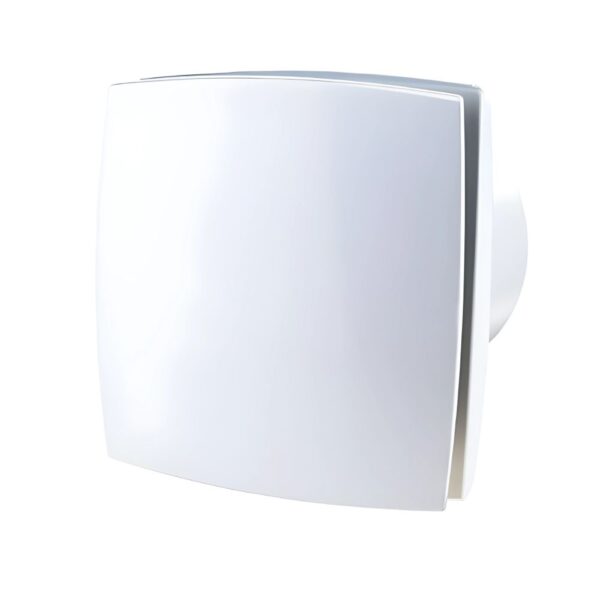

Chico Exhaust Fan 150mm White with Timer
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $203.00.$183.00Current price is: $183.00.
| Extraction Rate | 264 m3/hr (73.33 l/s) |
|---|---|
| Hole (Cutout) Size | 150mm Round |
| Fascia Size | 206mm Square |
| Ductable? | Yes (150mm duct diameter) |
The Chico range features a modern design with a capable exhaust fan. It is a ductable ceiling or wall mounted exhaust fan with a very modern low profile fascia, which makes it popular with interior designers and architects. This package comes with a 1-25 minute variable run on timer. The timer is adjustable and can be set from anything from 1-25 minutes depending on your preference. This will need to be hardwired to to the fan by an electrician.
Customers please be aware that the above dimensions refer to the length of the unit with the backdraft shutter closed. To allow room for the backdraft shutter to open, this unit requires a wall/ceiling cavity of at least 18.5 cm.
| Manufacturer | Fanco |
|---|---|
| Model Number | EMVULD3WH – ETVETF7 |
| Colour | White |
| Material | Plastic |
| Hole Size | 150mm |
| Capacity (m3/hr) | 264 m3/hr |
| Capacity (L/S) | 73.33 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 17.6 m3 |
| Motor Power (Wattage) | 24w |
| Motor Height | 118mm |
| Noise Level | 37 dB(A) |
| IP Rating | IP34 |
| Voltage | 220 – 240 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling or Wall |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 150mm |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
