Kit #2: Small Bathroom Kit TT 125 with Designer Vent (Up to 18m3)
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $219.00.$199.00Current price is: $199.00.
Motor Capacity: 280 m3/hr (77.77 l/s)
Motor Type: Mixflow

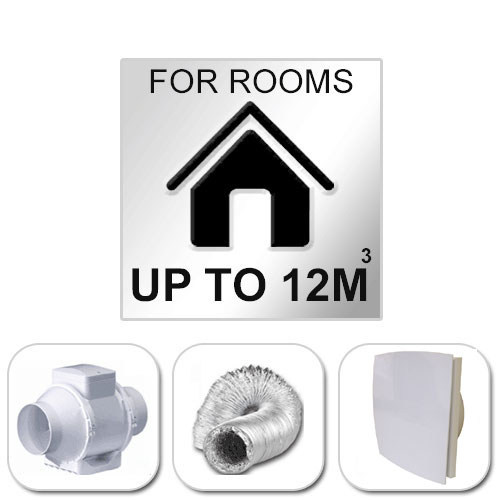

Kit Includes:
1x TT 125 In Line Fan (EXVUTT125)Click to view fan Specs
1x Lead and Plug(EALEADL21MB)(Includes installed lead & plug connected to high speed, which will need to be removed if purchasing additional speed controller accessory and hard wired instead)
1 x Internal decorative vent 125 mm (EVVULD125) Click here to view vent specs
1 x External Vent 125 mm(EVVUFS125UV)
1 x Back draft shutter 125 mm(EABDP125VU)
1 x 3m Flexible Duct 125mm(EDNU1253MF)
1 x Duct tape(EATAPED)
View full technical specs further down the page

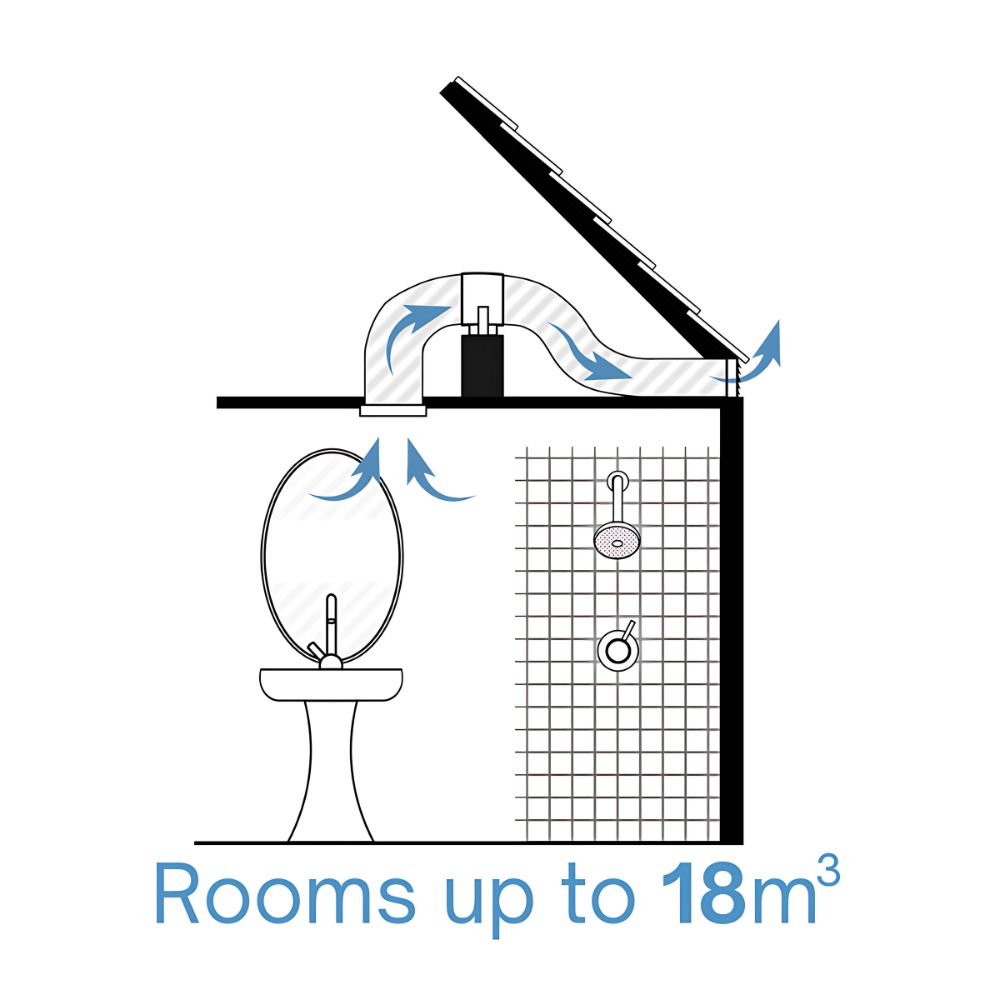

The kit comes complete and includes an inline fan which is usually placed in the roof space, a vent for the ceiling of the room, a vent for the outside wall or eave and flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.
Inline exhaust systems allow high volumes of air to be ducted outside instead of in to the roof space.
The flow of air is as follows:
Internal ceiling vent – inline fan – back draft shutter – external vent.
Installation
The kit is intended as a “do it yourself” and the fan can be plugged in to an available power point in the roof space, (connected to a switch in the room). This is usually available in bathrooms, toilets and the like or an electrician could install it independent of the system installation.
How we calculate the required air volume
For good ventilation, it is recommended to achieve 15 air changes per hour in a bathroom, toilet, laundry or similar. To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by 15 to get the required air volume of the fan. Note this will be adequate in most situations. We recommend that those clients who have a lot of glass or have warmer, longer showers or simply prefer a minimum of steam/moisture get a fan with double or more the recommended capacity.
| Manufacturer | Fanco |
|---|---|
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Installation | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Capacity (m3/hr) | 280 m3/hr |
