Kit #6: Large Bathroom Kit 2 Intakes TT 150 (Up to 37m3)
Original price was: $329.00.$289.00Current price is: $289.00.
Pre-Order Product: ETA Early Dec
Motor Capacity: 520 m3/hr (144.44 l/s)
Motor Type: Mixflow
Kit Includes:
1x TT 150 In Line Fan with inbuilt speed switch & Plug (EXVUTT150RV)Click to view fan Specs (Includes installed lead & plug connected to high speed, which will need to be removed if purchasing additional speed controller accessory and hard wired instead)
2 x Internal Vent Cone Ceiling Diffuser 150 mm (EVFLC150) Click to view vent Specs
1 x External Vent 150 mm(EVVUFS150)
1 x Back draft shutter 150 mm(EABDP150VU)
1 x 6m Flexible Duct 150mm(EDNU1506MF)
1 x T Junction 150mm x 150mm x 150mm(EAVUTJ150P)
1 x Duct tape(EATAPED)
View full technical specs further down the page
The kit comes complete and includes an inline fan which is usually placed in the roof space, a vent for the ceiling of the room, a vent for the outside wall or eave and flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house and a BTO or Y piece that allows the ducting to be split into two intake points.
Inline exhaust systems allow high volumes of air to be ducted outside instead of in to the roof space.
The flow of air is as follows:
Internal ceiling vent – inline fan – back draft shutter – external vent.

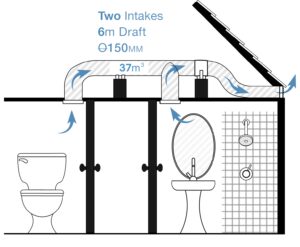

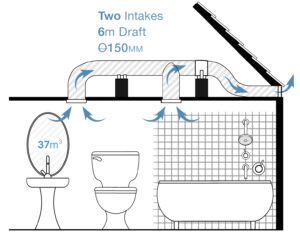

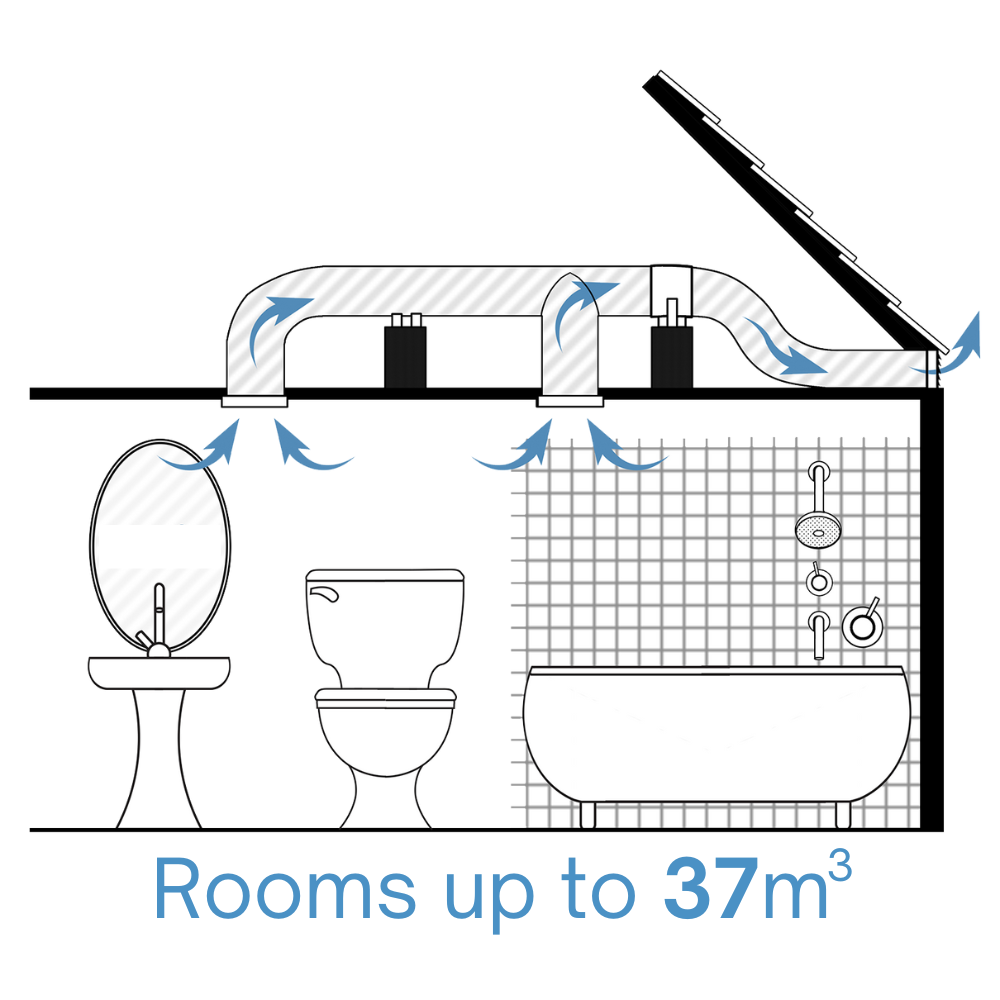

The Dual Intake system allows for both to be installed either in one large room, or for separate intakes in adjoining rooms. Both variables are shown below in the graphics.
Installation
The kit is intended as a “do it yourself” and the fan can be plugged in to an available power point in the roof space, (connected to a switch in the room). This is usually available in bathrooms, toilets and the like or an electrician could install it independent of the system installation.
How we calculate the required air volume
For good ventilation, it is recommended to achieve 15 air changes per hour in a bathroom, toilet, laundry or similar. To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by 15 to get the required air volume of the fan. Note this will be adequate in most situations. We recommend that those clients who have a lot of glass or have warmer, longer showers or simply prefer a minimum of steam/moisture get a fan with double or more the recommended capacity.
| Manufacturer | Fanco |
|---|---|
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Installation | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Capacity (m3/hr) | 520 m3/hr |
