LD Auto Small Cavity Exhaust Fan w/ Auto Shutters 150mm White
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $199.00.$179.00Current price is: $179.00.
| Extraction Rate | 295 m3/hr (81.94 l/s) |
|---|---|
| Hole (Cutout) Size | 150mm Round |
| Fascia Size | 240mm Square – Face protrudes approx 56mm from wall to cover |
| Ductable? | Yes (150mm duct diameter) |

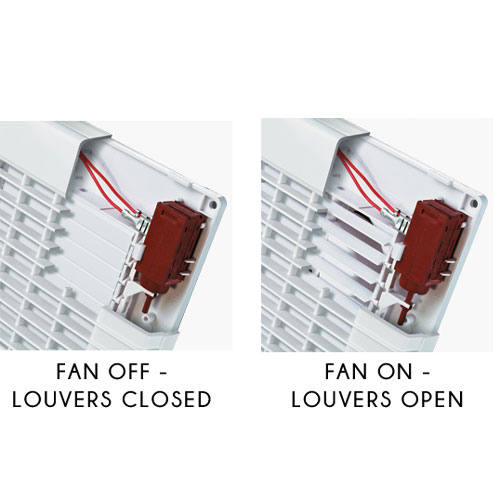

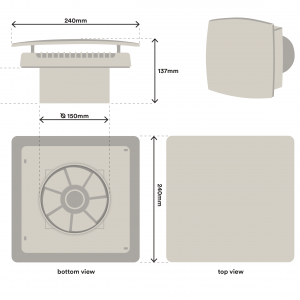

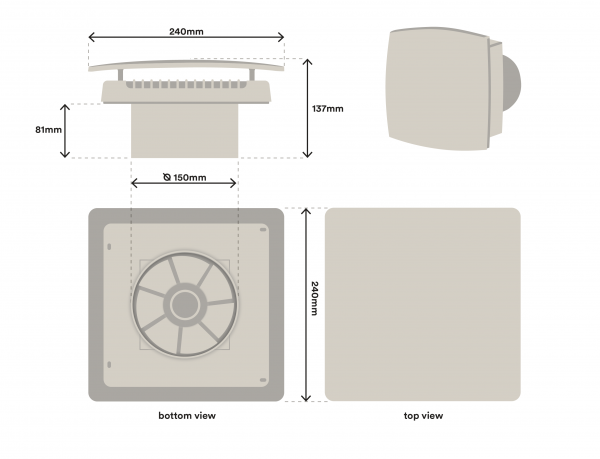

The IP24 rated LD Auto features a modern design and aesthetic look with an attractive square fascia. This unit is ideal for bathroom, showers, kitchens and other utility spaces. The built in auto shutter provides automatic opening/closing once the unit is turned on/off. The impeller design enhances the fan efficiency and prolongs the motor service life. This fan is well suited for walls with limited cavity space – the flange requires only 81mm. This is because the motor is situated behind the front cover, this means that the protrusion from wall to cover is 56mm. For more information take a look at the dimensions diagram in the image gallery.
| Manufacturer | Fanco |
|---|---|
| Colour | White |
| Material | Plastic |
| Hole Size | 150mm |
| Capacity (m3/hr) | 295 m3/hr |
| Capacity (L/S) | 81.94 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 19.6 m3 |
| Motor Power (Wattage) | 26w |
| Motor Height | 137mm |
| Noise Level | 39 dB(A) |
| IP Rating | IP24 |
| Voltage | 220 – 240 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling or Wall |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 150mm |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
