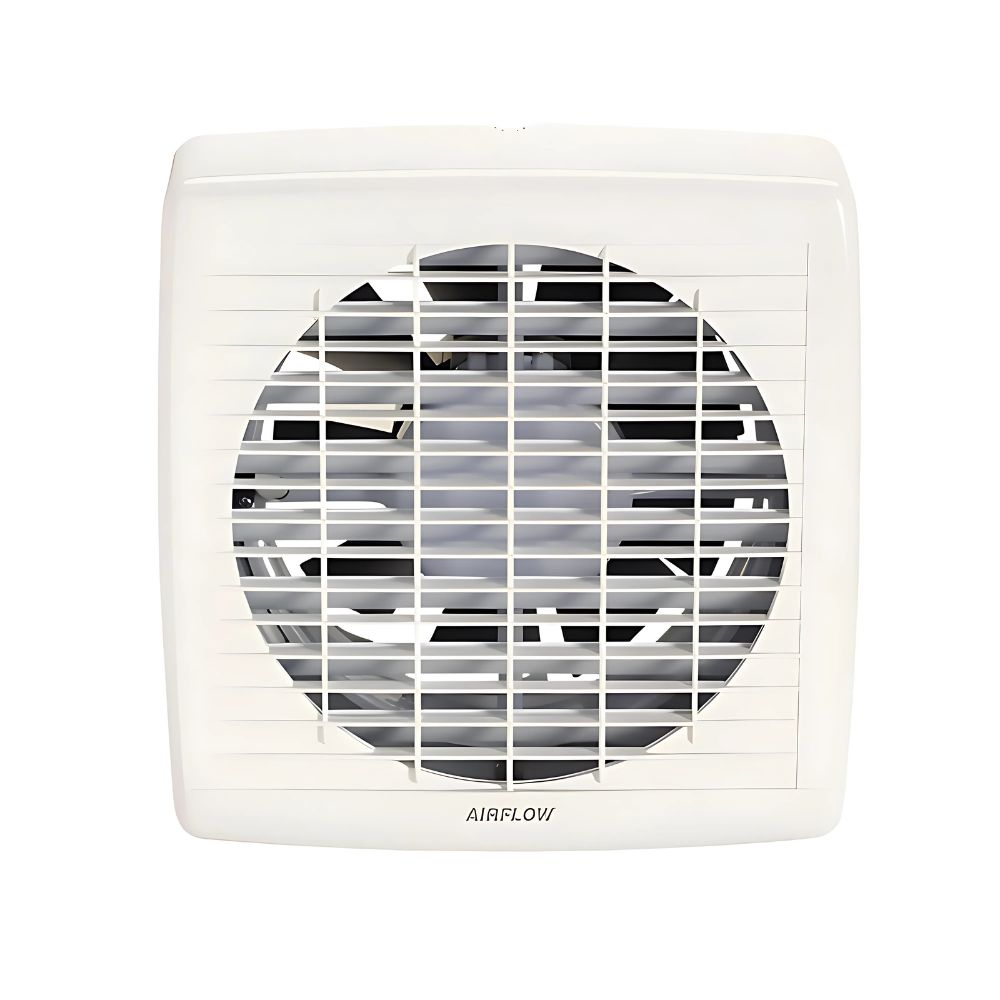

Maxair Wall Fan 200mm w Pull Cord
IN STOCK | Typically dispatches within 3 business days
Original price was: $459.00.$409.00Current price is: $409.00.
Capacity: 470 m3/hr (83.33 l/s)
Hole (Cutout) Size: 220mm – 250mm Round
Face Size: 271mm Square
Ductable: No
View full technical specs further down the page
The Maxair exhaust wall fan features electric shutters to prevent back drafts. This product is supplied with an external grille and duct to join. Please note that auto-shutters will take approximately 30 seconds to open and close. This model also comes with a pull cord hanging from the bottom of the motor for convenient on/off operation.
| Manufacturer | Clipsal |
|---|---|
| Model Number | 7108AN |
| Colour | White |
| Material | Plastic |
| Hole Size | 220mm – 250mm |
| Wall Depth | 110mm – 310mm |
| Capacity (m3/hr) | 470 m3/hr |
| Capacity (L/S) | 83.33 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 40 m3 |
| Motor Power (Wattage) | 20w |
| Noise Level | 53 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 – 240 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Wall |
| Includes Backdraft Shutter | No |
| Ductable? | Non-Ductable |
| Warranty | The manufacturer offers a 3 year replacement warranty (conditions apply). |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
Easy Fit Wall Installation
MaxAir Wall Fans are the easiest to install and are supplied with unique ductwork that will easily fit walls between 110 and 310mm. No cable ties or tape is needed, as the duct attaches easily to the fan’s unique ‘duct grippers’. Both fans are configured to allow a flex and plug to be fitted or they can be wired direct.
