Mercator Domini Exhaust Fan with Heat & CCT Light – Silver

Original price was: $339.00.Current price is: $299.00.

SKU: ECMEMIDOLEDSL Categories: , , ,



Extraction Rate 460 m3/hr (127.77 l/s)

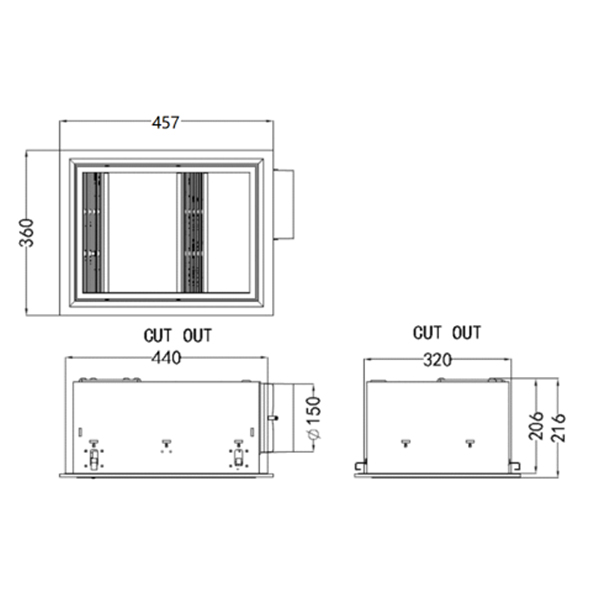

Hole (Cutout) Size 440mm x 320mm
Light 1 x 13W tri-colour LED panel light
Heat 1 x 800w Linear heat lamp (R7)
Ductable? Yes (150mm duct diameter)

————-

This product is currently Out of Stock with no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us

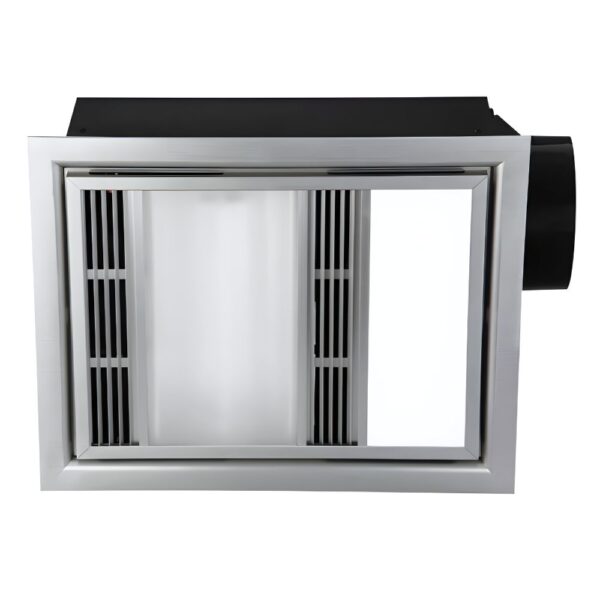

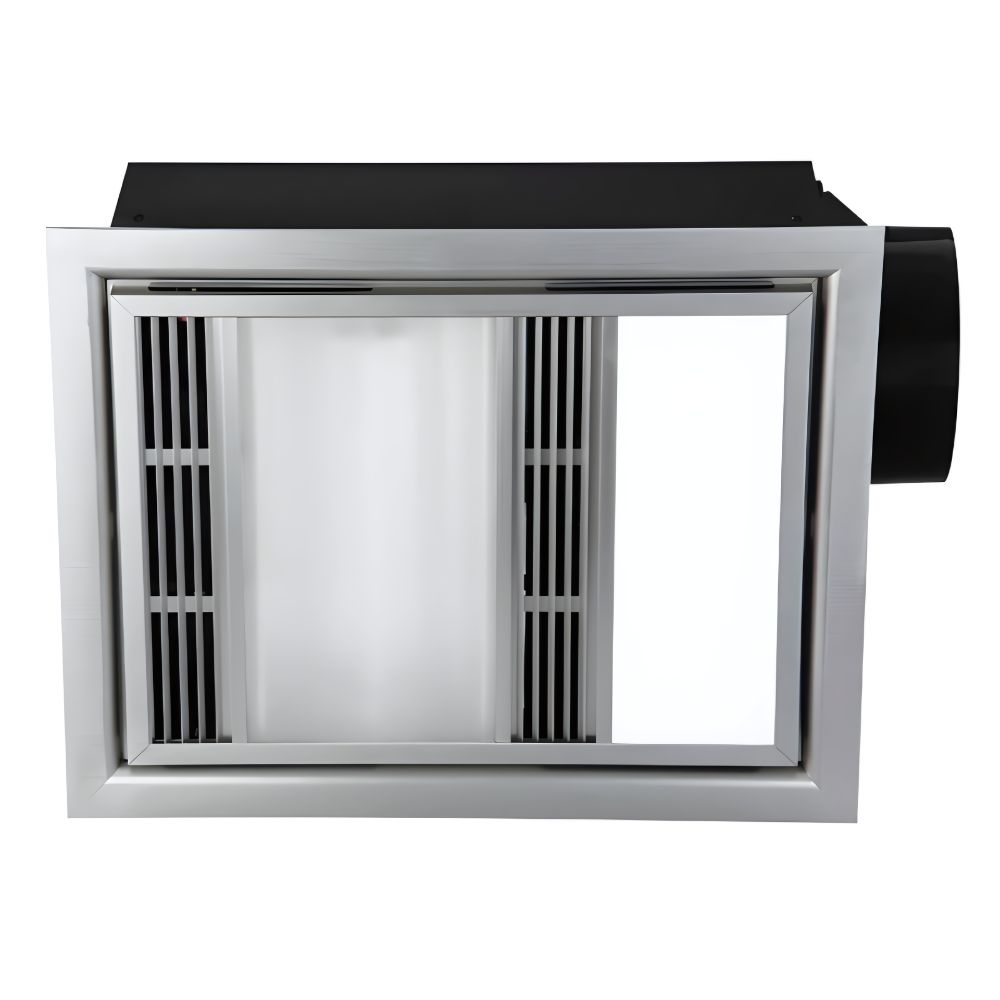

The Silver Mercator Domini is a compact 3 in 1 bathroom unit with a built in CCT LED Light. The unit is IP22 rated and is the perfect addition to a modern bathroom!

Domini Features:

  • 3 year replacement warranty – exclude lamps (2 years warranty for heat lamp)
  • High airflow extraction up to 460 m3/hr
  • 1 x 800W heat lamps for instant heating
  • 1 x 13W tri-colour LED panel light
  • Heavy duty metal housing provides durability
  • Triple overheating protections by thermostat, thermal cutout and fuse
  • Extra safety protection by contact switch activated heat lamp
  • Side ducted with draft stopper
  • Cut-out template included

Domini LED Light Specs:

  • 13w CCT LED Light, select from warm white, neutral white or cool white
  • Lumens differ depending on selected light temperature
  • Warm White: 900 lumens
  • Neutral White: 950 lumens
  • Cool White: 900 lumens

Included in the box

  • 1 x 3-IN-1 Bathroom Solution
  • 1 x 800W linear heat lamp
  • 1 x 1.5m flexible aluminium duct
  • 1 x 3 gang switch wall controller
  • 2 x clamps for ducting
  • 1 x external wall grille
Manufacturer

Mercator
Model Number

BH161ESWSL
Colour

Silver
Material

Metal
Hole Size

440mm x 320mm
Type of Light

LED
Capacity (m3/hr)

460 m3/hr
Capacity (L/S)

127.77 L/S
Recommended Room Size (Based on Achieving 15 air changes per hour)

30.6 m3
Motor Power (Wattage)

60w
Minimum Install Depth

235mm
Noise Level

TBC
Installation

This fan requires hardwiring by an electrician
Installation Location

Ceiling
Includes Backdraft Shutter

Yes
Ductable?

Ductable
Duct Location

Side Ducted
Duct Size

150mm
Warranty

Mercator Domini – The manufacturer offers a 3 year replacement warranty. This excludes the heat lamps which have a 2 year replacement warranty.
Capacity Disclaimer

All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible
Room Size Recommendation Disclaimer

As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice.
