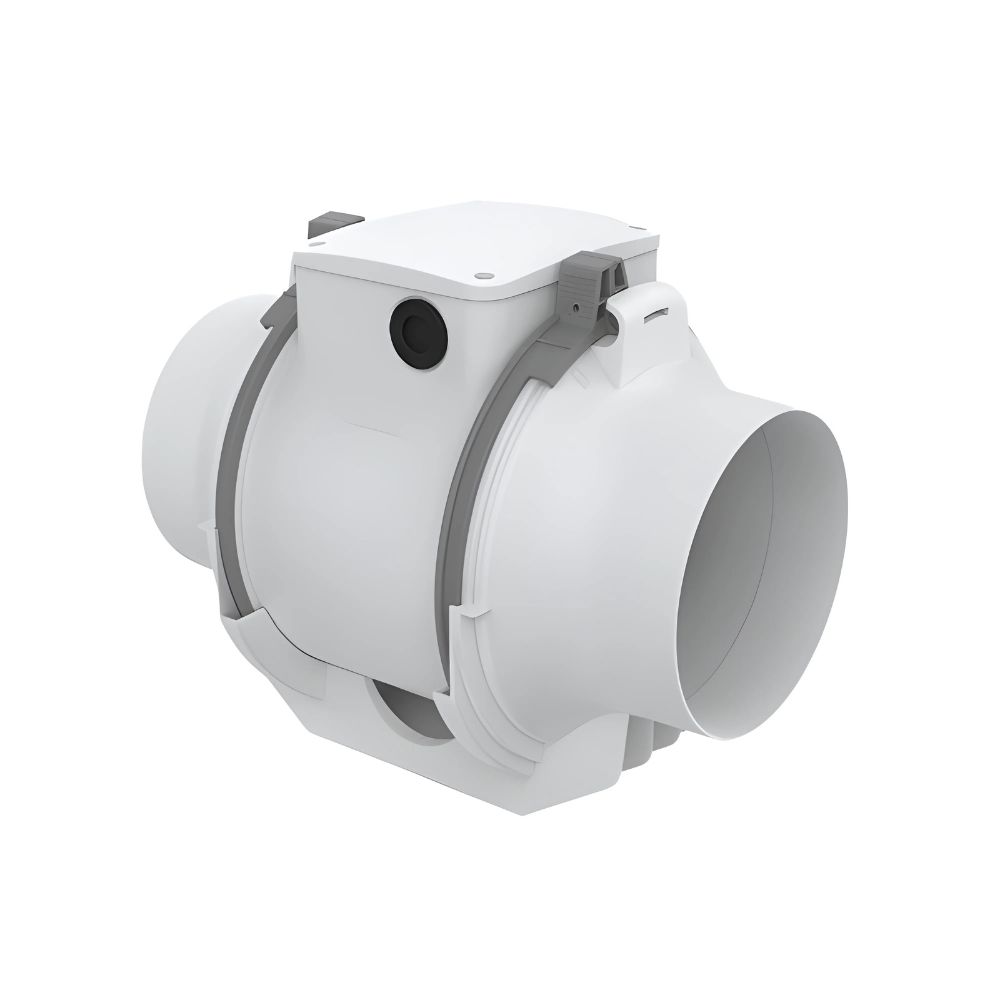

Oerre Linear Mixed Flow Inline Fan 100mm
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $189.00.$169.00Current price is: $169.00.
Capacity: 260 m3/hr (72.22 l/s)
Motor Type: Mixflow
Ductable: Yes (100mm duct diameter)
View full technical specs further down the page
Model: OERRE LINEAR 100
The Oerre Linear 100mm In-Line Mixed Flow Vent is designed to optimize airflow and air quality in diverse environments. Whether for residential, commercial, or industrial applications, this compact yet powerful vent delivers exceptional functionality and reliability. It has a long life ball bearing motor that ensures durability. It features three running speeds to suit diverse environmental and application needs. The quick release of the central unit facilitates fast maintenance or replacement. More details below
The Oerre Linear 100mm In-Line Mixed Flow Vent is perfect for a wide range of applications, including:
- Residential ventilation systems
- Commercial kitchens and bathrooms
- Industrial workshops and warehouses
- HVAC systems and ducting
With its user-friendly design, installation and maintenance of the Oerre Linear 100mm In-Line Mixed Flow Vent are straightforward. The quick-release central unit simplifies maintenance tasks, ensuring minimal downtime and maximum operational efficiency. The electrical connection compartment is IPX4 protected for enhanced safety, and the double insulation eliminates the need for a ground wire.
The Oerre Linear has the option for three different speeds, ranging from 140 m3/hr min speed to 260m3/hr to provide flexibility in your ventilation needs. Click the performance tab to find out more.
| Manufacturer | Oerre |
|---|---|
| Model Number | UF47300 |
| Material | Plastic |
| Capacity (m3/hr) | 260 m3/hr |
| Capacity (L/S) | 72.22 L/S |
| Motor RPM | 2400 |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 17.3 m3 |
| Noise Level | 38 dB(A) |
| IP Rating | IPX4 |
| Voltage | 220 – 240 |
| Installation | This fan requires hardwiring by an electrician |
| Duct Size | 100mm |
| Max Temperature of Transferred Air | 40°C |
| Warranty | Oerre: The manufacturer offers a 2 year replacement warranty. Conditions Apply. Contact your store of purchase for warranty issues. |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Current (A) | 0.12 |
| Speeds | 3 Speeds |

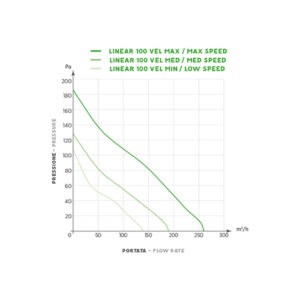

Performance
3-speed in line fan.
- Min speed: 140 m3/hr
- Med speed: 190 m3/hr
- Max speed: 260 m3/hr

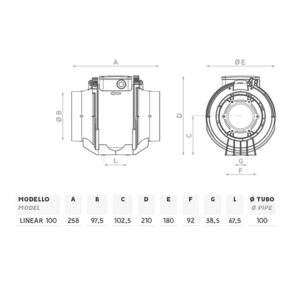

Dimensions
