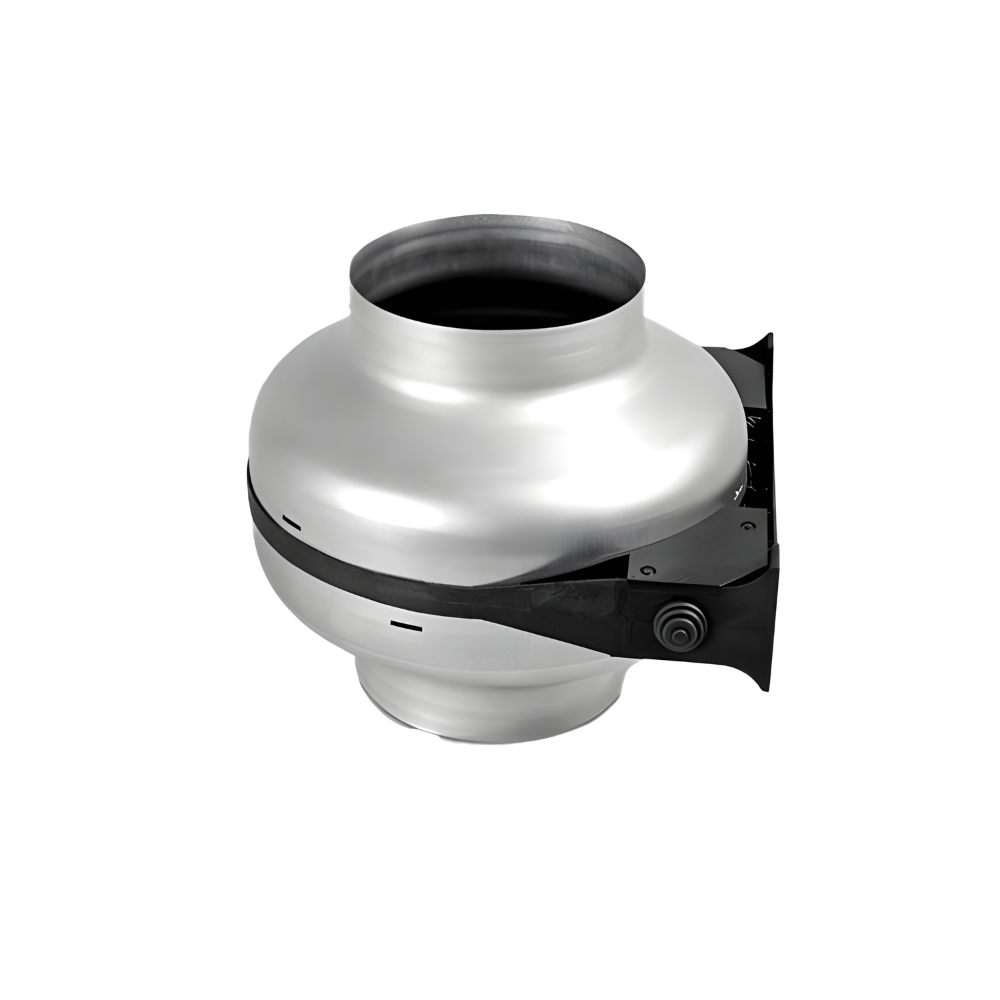

Oerre Turbo Centrifugal Inline Fan 150mm
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $369.00.$319.00Current price is: $319.00.
Capacity: 500 m3/hr (138.89 l/s)
Motor Type: Centrifugal
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
Model: OERRE TURBO 150
The Oerre Turbo Centrifugal 150mm Inline Fan delivers powerful ventilation with a capacity of 500m³/hr, making it ideal for large industrial and commercial settings. Engineered for durability and efficiency, this fan features a zinc-plated steel frame and a high-resistance motor support with airflow fins for optimal performance. Its IPX4 protection and double-insulated design ensure reliable operation, while the integrated mounting bracket allows for easy installation. Whether in factories, bars, or spacious offices, this fan ensures superior air quality and circulation.
The Oerre Turbo Centrifugal range offers high-performance ventilation solutions suitable for a diverse array of environments. Engineered with durability and functionality in mind, the range features:
- Suitable for domestic, commercial, and industrial environments.
- Max temperature of extracted air: 40°C.
- Ball bearing motor protected.
- Zinc plated steel frame, high resistance motor support
- Electrical box IP54 protected.
- Product IPX4 protected.
- Double insulated product, without ground wire for fast connection.
Whether you’re outfitting a small office or a large warehouse, the Oerre Turbo Centrifugal range delivers exceptional ventilation performance you can rely on.
| Manufacturer | Oerre |
|---|---|
| Model Number | UF37600 |
| Material | Plastic |
| Capacity (m3/hr) | 500 m3/hr |
| Capacity (L/S) | 138.88 L/S |
| Motor RPM | 2530 |
| Motor Type | Centrifugal |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 33.3 m3 |
| Noise Level | 52 dB(A) |
| IP Rating | IPX4 |
| Voltage | 220 – 240 |
| Installation | This fan requires hardwiring by an electrician |
| Duct Size | 150mm |
| Max Temperature of Transferred Air | 40°C |
| Warranty | Oerre: The manufacturer offers a 1 year replacement warranty. Conditions Apply. Contact your store of purchase for warranty issues. |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Current | 0.2 |
