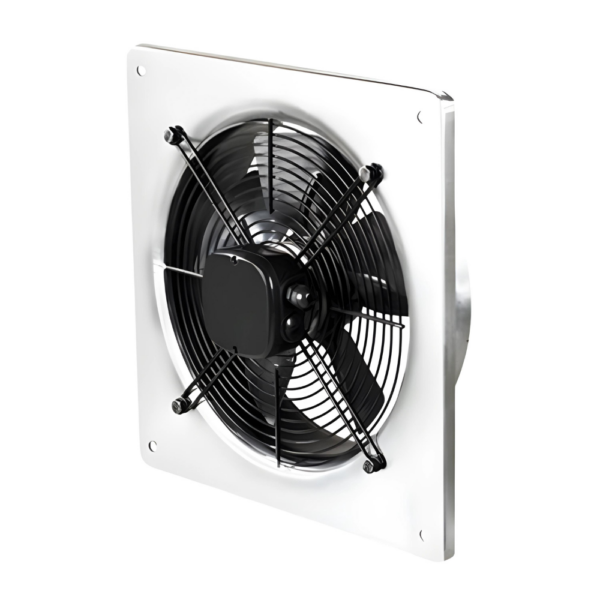

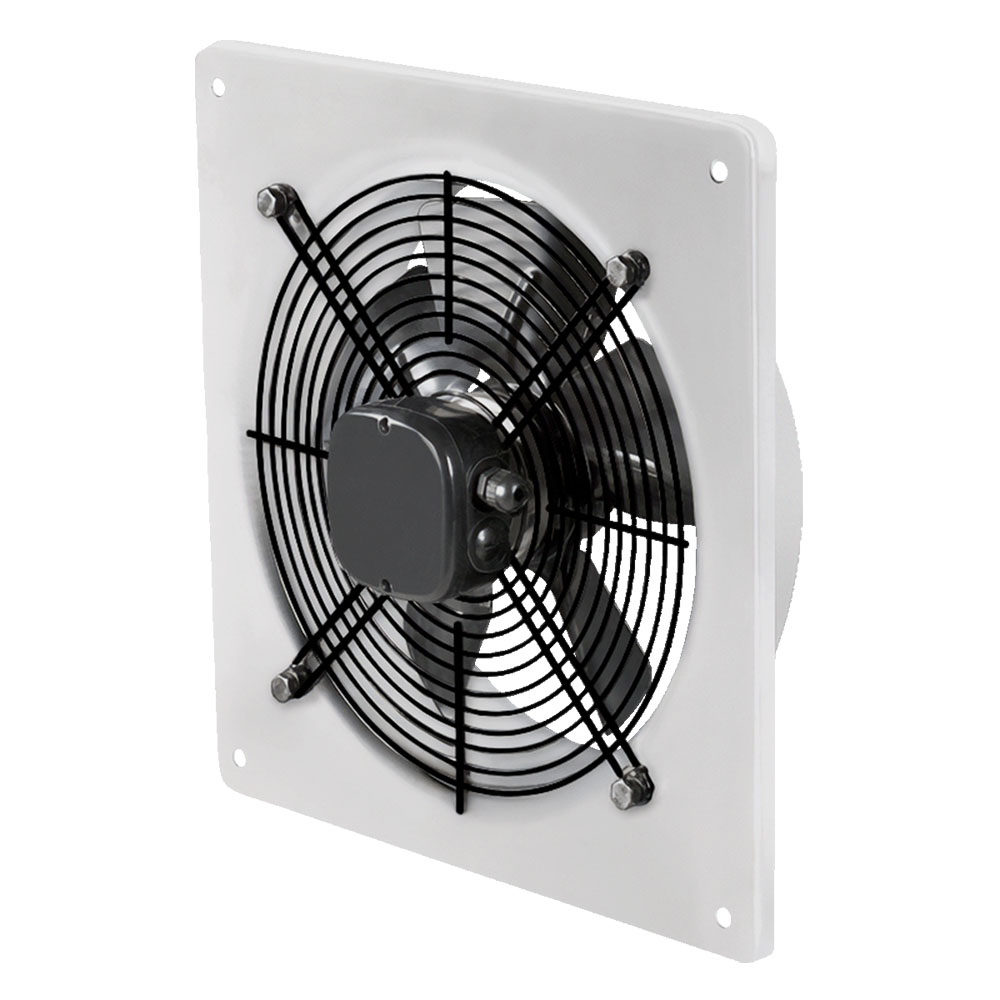

OV 4E Commercial Exhaust Fan 350mm
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $549.00.$499.00Current price is: $499.00.
Capacity: 2500 m3/hr (694.44 l/s)
Hole (Cutout) Size: 388mm Round
Face Size: 485mm Square
Ductable: Yes (Very short direct lengths ONLY)
View full technical specs further down the page
This large OV 4E commercial exhaust fan is a powerful ‘commercial’ grade fan with a huge capacity of 2500m3/hr. With a steel casing and impeller combined with a quality ball bearing motor this fan is a great choice for commercial applications. The commercial exhaust fan can be mounted on a wall or ceiling by means of the square mounting plate provided. The manufacturer offers a 2 year replacement warranty. For technical details please view the information below.
| Manufacturer | Fanco |
|---|---|
| Model Number | OV 4E 350 |
| Colour | White |
| Material | Metal |
| Hole Size | 388mm |
| Capacity (m3/hr) | 2500 m3/hr |
| Capacity (L/S) | 694.44 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 166.6 m3 |
| Motor Power (Wattage) | 140w |
| Noise Level | 62 dB(A) |
| IP Rating | IP24 |
| Voltage | 230 |
| Motor RPM | 1380 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling, Wall |
| Includes Backdraft Shutter | No |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 400mm |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Max Temperature of Transferred Air | 60 °C |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
