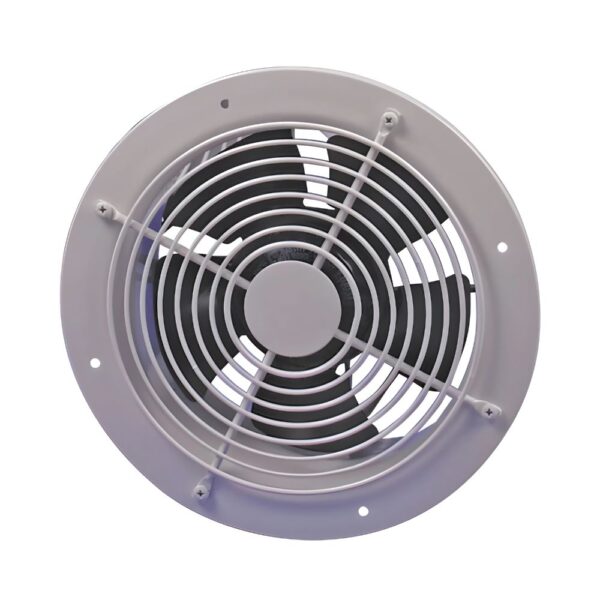

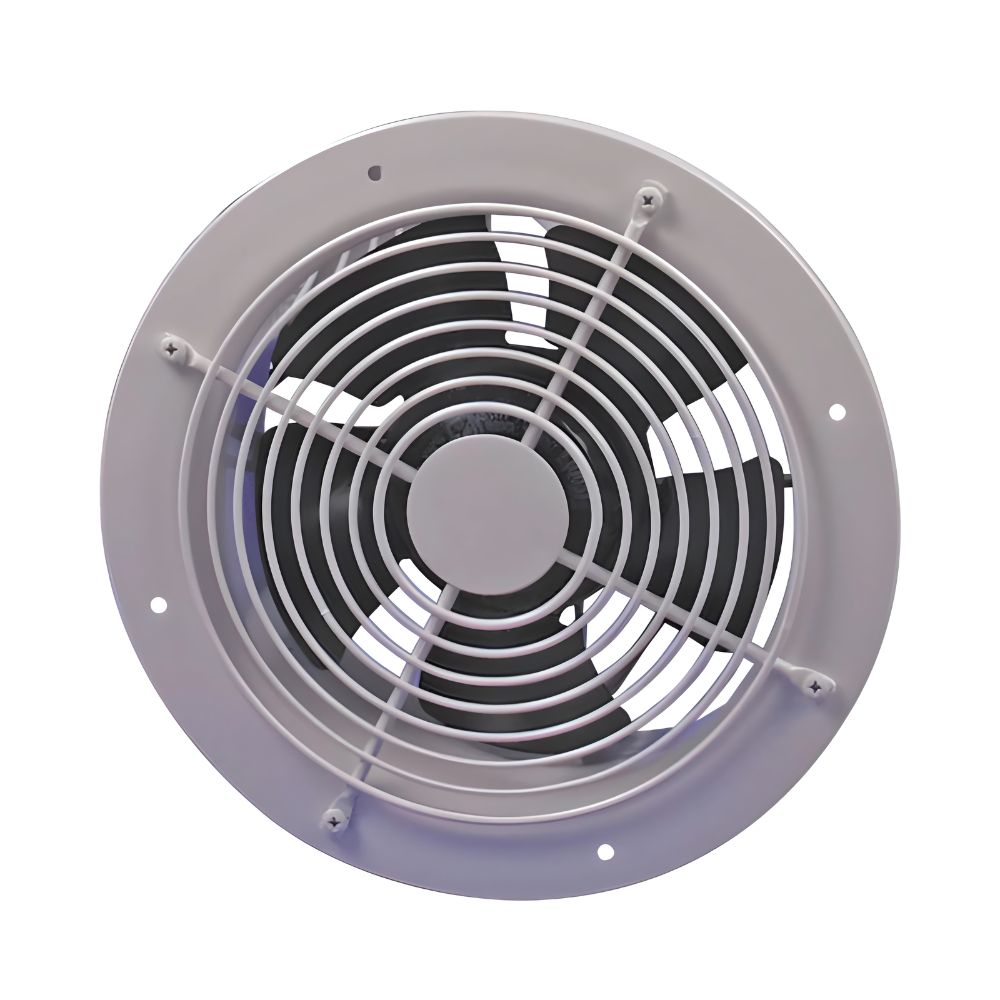

RP Series Commercial Exhaust Fan – 306 Model
IN STOCK | Typically dispatches within 3 business days
Original price was: $1,059.00.$959.00Current price is: $959.00.
Capacity: 1260 m3/hr (350 l/s)
Hole (Cutout) Size: 325mm Round
Face Size: 395mm Round
Ductable: Yes (Very short direct lengths ONLY)
View full technical specs further down the page
The Fantech RP Series suitable for wall or ceiling mounting, is a high quality, cost effective fan suitable for a broad range of commercial and industrial applications.
Fantech RP fans have a galvanised steel fan impeller and ring. The fan impeller is black in colour, while other components have an Oyster Grey powder-coated finish. Wiring access is from the rear of the fan. Click on the ‘dimensions and performance’ tab below to view technical information pertaining to this model.
Note: the particular wiring and capacitor configuration does not allow for installation of a lead and plug. This fan will need to be hardwired by an electrician.
| Manufacturer | Fantech |
|---|---|
| Model Number | RP 306 |
| Colour | Grey |
| Material | Metal |
| Hole Size | 325mm |
| Capacity (m3/hr) | 1260 m3/hr |
| Capacity (L/S) | 350 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 84 m3 |
| Motor Power (Wattage) | 50w |
| Noise Level | 37 dB(A) |
| IP Rating | IP44 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling |
| Includes Backdraft Shutter | No |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 350mm |
| Warranty | Fantech – The manufacturer offers a 1 year replacement warranty (conditions apply). |
| Max Temperature of Transferred Air | 50 °C |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
