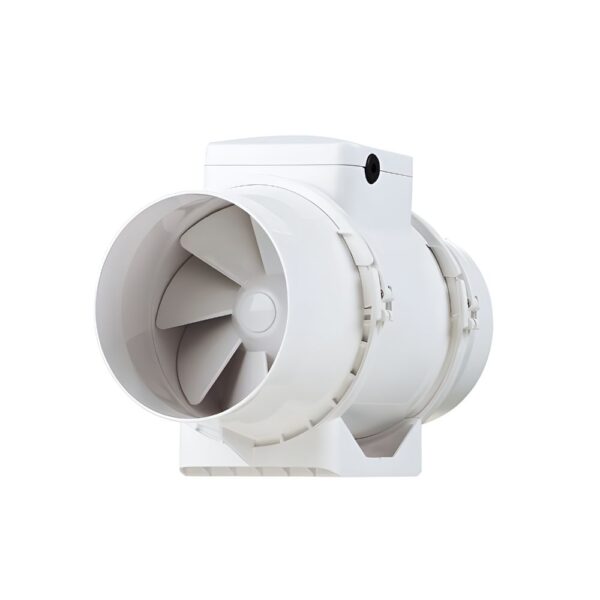

TT Mixflow In Line Fan 150mm
Original price was: $175.00.$155.00Current price is: $155.00.
Pre-Order Product: ETA Early Dec
High Speed Capacity: 520 m3/hr (144.44 l/s)
Low Speed Capacity: 405 m3/hr (112.5 l/s)
Motor Type: Mixflow
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
The TT Mixed Flow in line exhaust fan (150mm) has two speeds available and requires an electrician to connect the fan to the desired speed – it does not include a speed switch. The lower setting has an output capacity of 405m3/hr, the higher setting has an output capacity of 520m3/hr. If the fan is set on the lower setting, the fan is much quieter. This model has a long life, continuous rated motor.
Please Note: If you wish to purchase this fan with a lead and plug please see our TT 150 RV listing. The product’s actual colour may vary – in some cases, there may be a colour difference between the motor and the intake/outlet points (one may be slightly more grey than the other).
| Manufacturer | Fanco |
|---|---|
| Model Number | TT 150 |
| Material | Plastic |
| Capacity (m3/hr) | 520 m3/hr |
| Capacity (L/S) | 144.4 L/S |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 34.6 m3 |
| Noise Level | 44 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation | This fan requires hardwiring by an electrician |
| Duct Size | 150mm |
| Motor RPM | 2460 |
| Max Temperature of Transferred Air | 60 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
