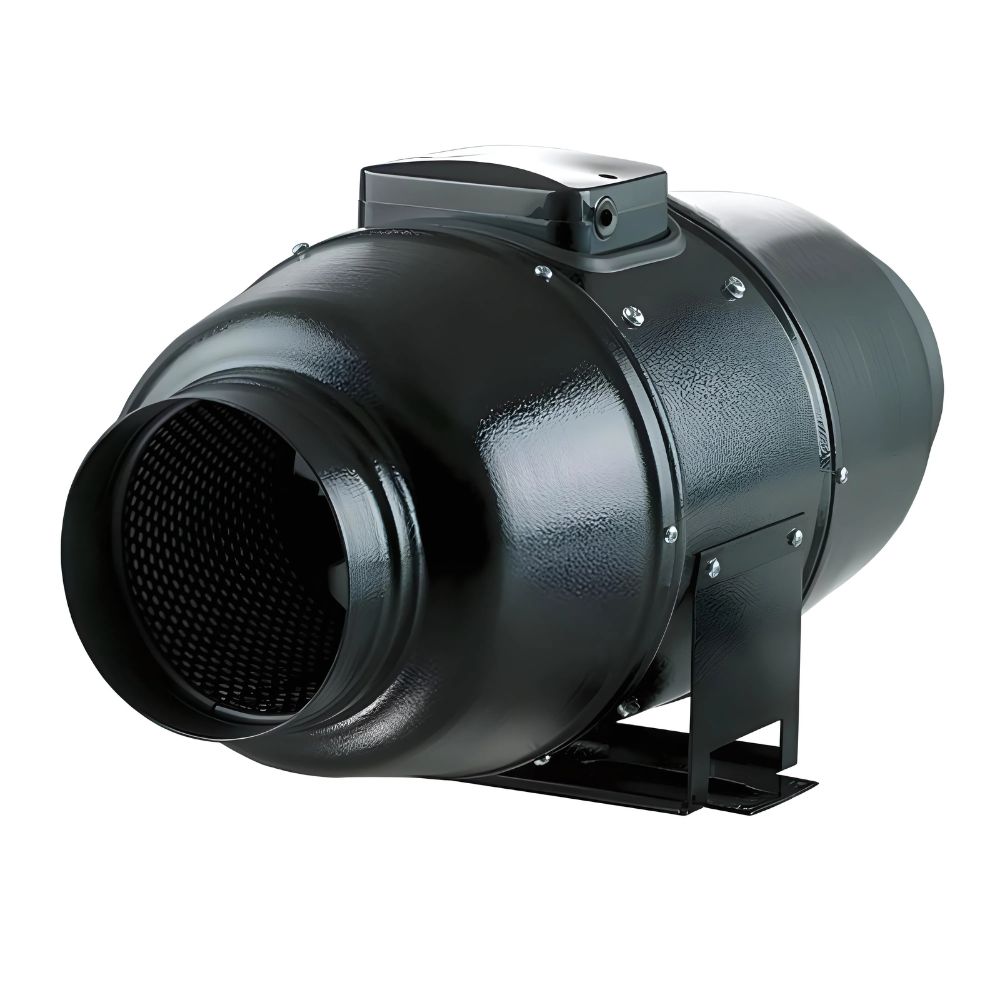

TT Silent Mixflow Inline Fan 315mm
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $1,049.00.$949.00Current price is: $949.00.
High Speed Capacity: 2050 m3/hr (569 l/s)
Low Speed Capacity: 1570 m3/hr (436 l/s)
Motor Type: Silent Mixflow
Ductable: Yes (315mm duct diameter)

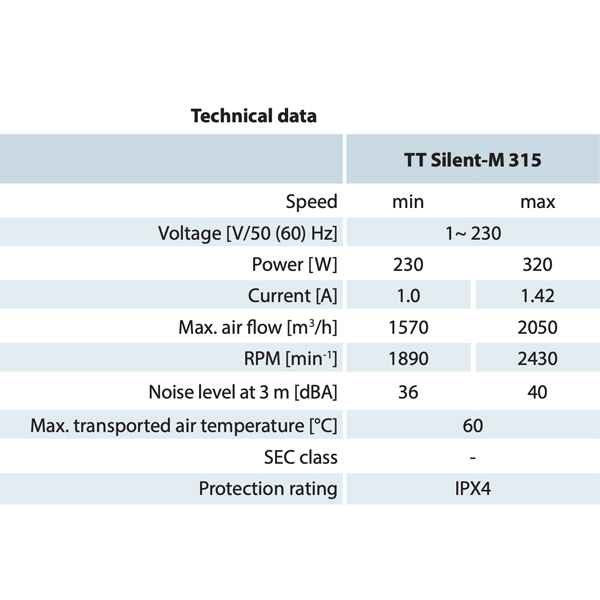

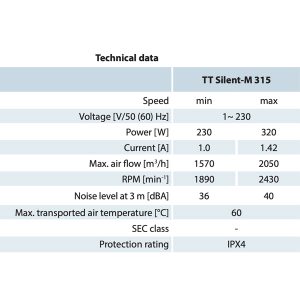

View full technical specs further down the page
Looking for a top-of-the-range inline fan – look no further!
The TT Silent Inline fan is an innovative new product designed specifically to operate quietly. With a built-in 50mm layer of mineral wool sound insulation, this product ensures quiet operation without compromising on performance. The fan has a capacity of 2050 m3/hr at the highest speed and a dBA rating of only 40. Most fans on the market with a comparable capacity will be around the 60-70 dBA mark! The fan is a great choice for the noise-conscious.
This product will need to be hardwired by an electrician. Please also note this product weighs 25kg.
| Manufacturer | Fanco |
|---|---|
| Material | Metal |
| Capacity (m3/hr) | 2050 m3/hr |
| Capacity (L/S) | 569.44 L/S |
| Motor Type | Mixflow |
| Motor Power (Wattage) | 320w |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 136.6 m3 |
| Noise Level | 40 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation | This fan requires hardwiring by an electrician |
| Duct Size | 350mm |
| Motor RPM | 2430 |
| Max Temperature of Transferred Air | 60 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
