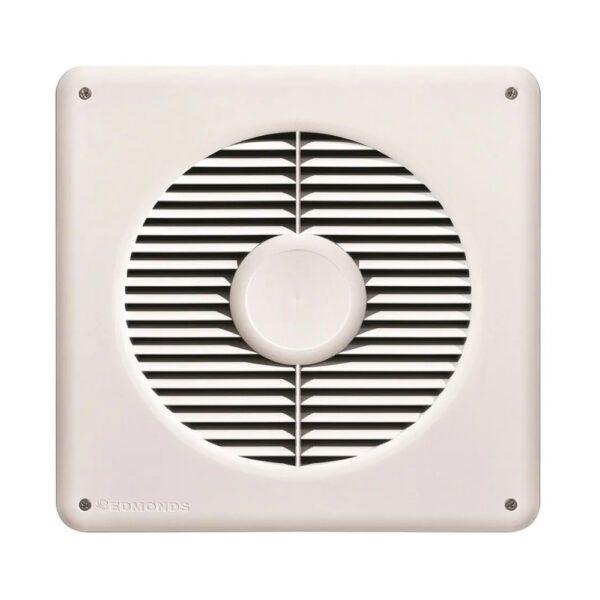

3 Speed DC Sub Floor Ventilation Fan – White
IN STOCK | Typically dispatches within 3 business days
Original price was: $465.00.$415.00Current price is: $415.00.
Capacity: 734 m3/hr (203.88 l/s)
Hole (Cutout) Size: 250mm Round
Face Size: 330mm Square
Ductable: Yes (250mm duct diameter)
View full technical specs further down the page
This fan is an Australian Made three speed powered sub-floor vent that removes stale, damp air from beneath your house. It comes with a high quality motor suitable for continuous operation.
This sub floor ventilation fan is a highly efficient fan that is a top quality product, designed to effectively remove subfloor damp and odours. The reliable motor ensures the fan is suitable for continuous operation, although the fan can be purchased with a 24 hour timer (see accessory below) so you can specify operating hours.
The fan can be installed in the sub-floor brickwork or wall and replacement air holes placed into the opposite wall. The fan will exhaust air from the sub floor while replacement air will enter from the breather holes causing a cross flow ventilation pattern.
The fan is set to exhaust mode, if you want to use the fan to supply fresh air you can simply unscrew the plastic cover and mount the motor in reverse. Instructions on how to do this are included in the package.
Features:
- High energy efficiency – can run 24/7
- Removes damp stale air and reduces mould build up from your sub floor
- Very low running costs
- High flow rates
- Easy and safe to install – No electrician required
- Designed to run in moist environments
- Quiet operation
- Slim lourve design
- Comes in 2 colours (this listing is for the white model) but can be easily painted to suit
Very low running costs – continuous operation cost as low as $13 a year (based on 21c/kWh). The fan is installed in the sub-floor brickwork by removal of one full brick and part removal of adjacent bricks above and below. No electrician is required. A 24v/240V adaptor is provided for connection to a standard power point.
Specifications:
- Throat diameter: 250mm
- Motor: 30W, 24VDC
- Line voltage: 100-240VAC 50/60Hz
- Colours: White and Brown
- IP Rating: IP54 Rated
- Warranty – 2 Years.
Performance Data:
Low Speed: 280 m3/hr – 4.4 watts – 32.8 dB(A)
Medium Speed: 457 m3/hr – 11.6 watts – 43 dB(A)
High Speed: 734 m3/hr – 30 watts – 53.5 dB(A)
| Colour | White |
|---|---|
| Material | Plastic |
| Hole Size | 250mm |
| Capacity (m3/hr) | 734 m3/hr |
| Capacity (L/S) | 203.88 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 48.9 m3 |
| Motor Power (Wattage) | 30w |
| Motor Height | 100mm |
| Noise Level | 32.8 dB(A) |
| Voltage | 24 (Includes Transformer) |
| Installation | This fan comes with a lead and plug for connection to a power socket |
| Installation Location | Wall |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 250mm |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply). |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Design | Square |
| Manufacturer | Edmonds |
