Kit #6: Up to 120m3 – In Line VKM + BTO Underfloor Kit
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $449.00.$399.00Current price is: $399.00.
Sub Floor Kit Options
Kits sized based on sub floor area size. Note multiple kits can be used if required. Premium kits are powered by a Silent inline fan. All kits are supplied with a high quality inline fan with a European motor.
Motor Capacity: 580 m3/hr (161.11 l/s)
Motor Type: Metal Centrifugal

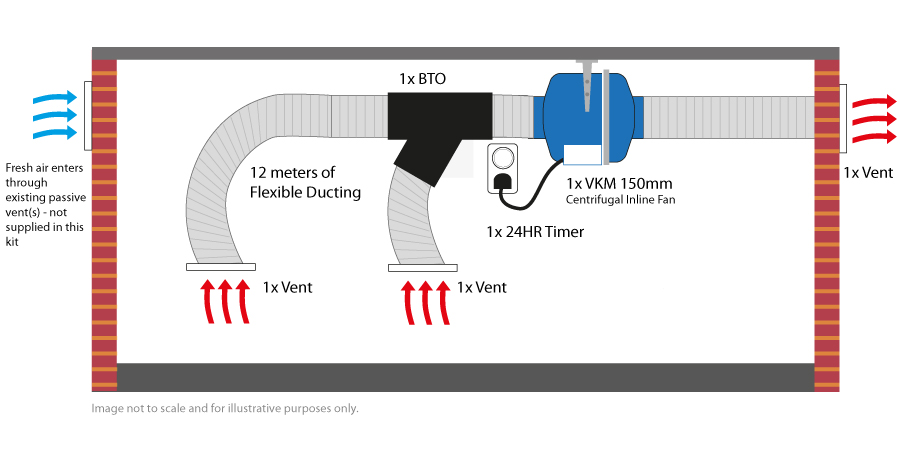

Kit Includes:
1x VKM 150 In Line Fan(EXVUV150B) Click to view fan Specs
2x 6m of 150mm duct(EDNU1506MF)
3x External Vents(EVVUFS150)
1x BTO (150x150x150)(EAB30666F)
1x 24hour Timer(EABUT24) (The timer is plugged into a standard power point)
1x Flex & Plug(EALEADL21MB) (includes installed lead & plug connected to high speed, which will need to be removed if purchasing additional speed controller accessory and hard wired instead. )
1x Roll of hanging tape(EATAPEH) (allows ducting to hang from joists)
1x Roll of duct tape(EATAPED) (allows secure connection of the system)
View full technical specs further down the page
Some buildings have very little subfloor ventilation. Inadequate underfloor ventilation can lead to an accumulation of moisture in the sub floor. This in turn can cause structural and health problems for the home and it’s occupants.
The most common reason for inadequate under floor ventilation is that there not enough vents, or they are too small for the size and layout of building. Building extensions, building location and soil type can all contribute to problems in the subfloor.
This underfloor kit is specifically designed for areas of up to 120 cubic meters.
| Manufacturer | Fanco |
|---|---|
| Installation | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
