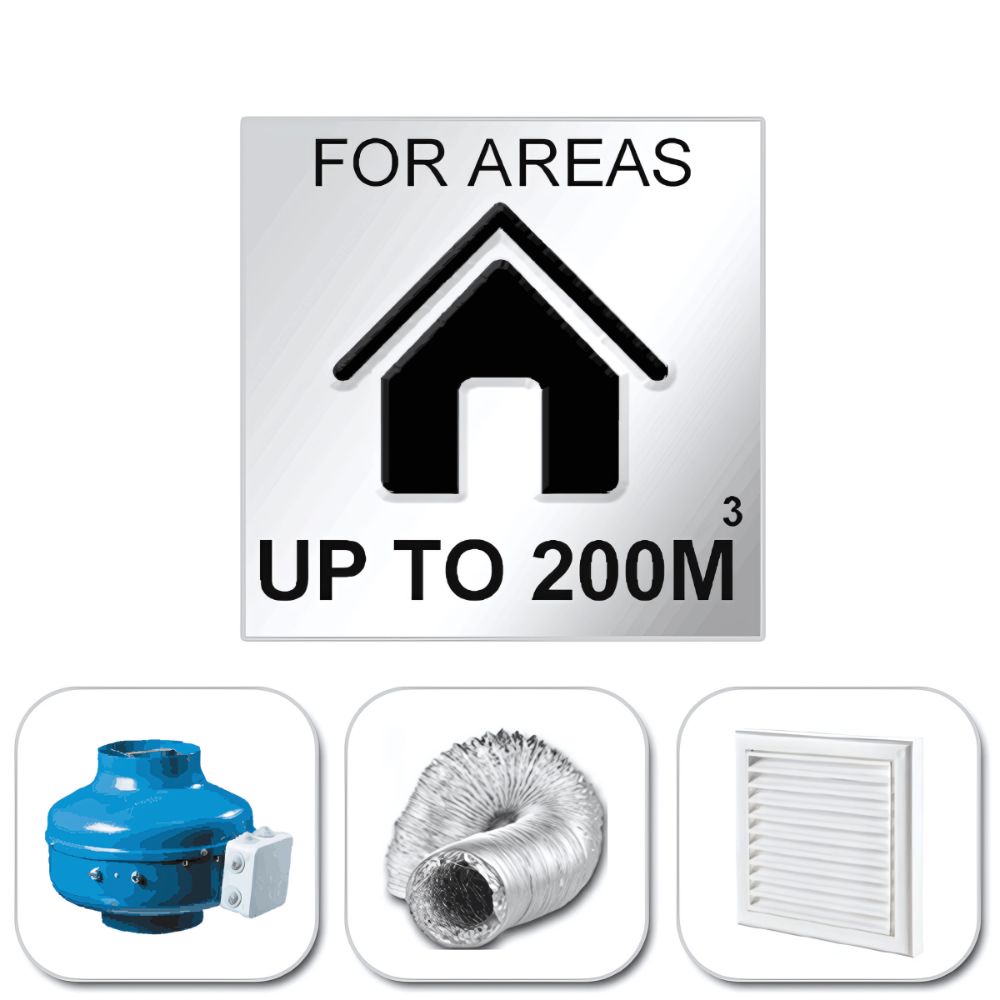

Kit #7: Up to 200m3 – VKM Inline Underfloor Kit
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $599.00.$549.00Current price is: $549.00.
Sub Floor Kit Options
Kits sized based on sub floor area size. Note multiple kits can be used if required. Premium kits are powered by a Silent inline fan. All kits are supplied with a high quality inline fan with a European motor.
Motor Capacity: 1150 m3/hr (319.44 l/s)
Motor Type: Metal Centrifugal
Kit Includes:
1x VKM 200 In Line Fan(EXVUV200) Click to view fan Specs (includes installed lead & plug connected to high speed, which will need to be removed if purchasing additional speed controller accessory and hard wired instead)
1x 6m of 200mm duct(EDNU2006MF)
2x 6m of 150mm duct(EDNU1506MF)
2x Cone Vents(EVVUMC150) Click to view vent Specs
1x BTO 200X150X150(EAB30866F)
1X 200-150 Reducer(EAVUPR1)
1x External Wall Vent(EVVUFS150)
1x 24hour Timer(EABUT24) (The timer is plugged into a standard power point)
1x Flex & Plug(EALEADL21MB) (The fan is then plugged into the timer)
1x Roll on hanging tape(EATAPEH) (allows ducting to hang from joists)
1x Roll of duct tape(EATAPED) (allows secure connection of the system)
View full technical specs further down the page
Some buildings have very little subfloor ventilation. Inadequate underfloor ventilation can lead to an accumulation of moisture in the subfloor. This, in turn, can cause structural and health problems for the home and its occupants.
The most common reason for inadequate underfloor ventilation is that there are not enough vents or they are too small for the size and layout of a building. Building extensions, building location and soil type can all contribute to problems in the subfloor.
This underfloor kit is specifically designed for areas of up to 200 cubic meters.
| Manufacturer | Fanco |
|---|---|
| Installation | This fan comes with a lead and plug for connection to a power socket |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
