VK Centrifugal Inline Fan 100mm
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $209.00.$189.00Current price is: $189.00.
Capacity: 250 m3/hr (69.44 l/s)
Motor Type: Centrifugal
Ductable: Yes (100mm duct diameter)

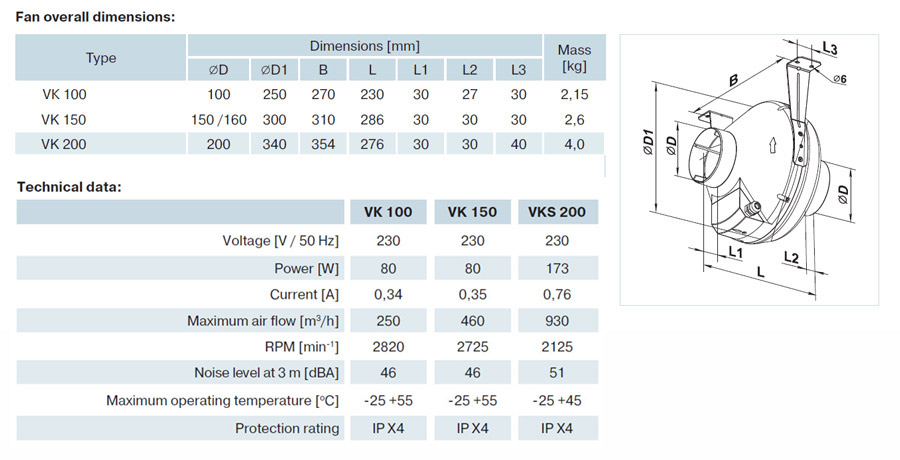

View full technical specs further down the page

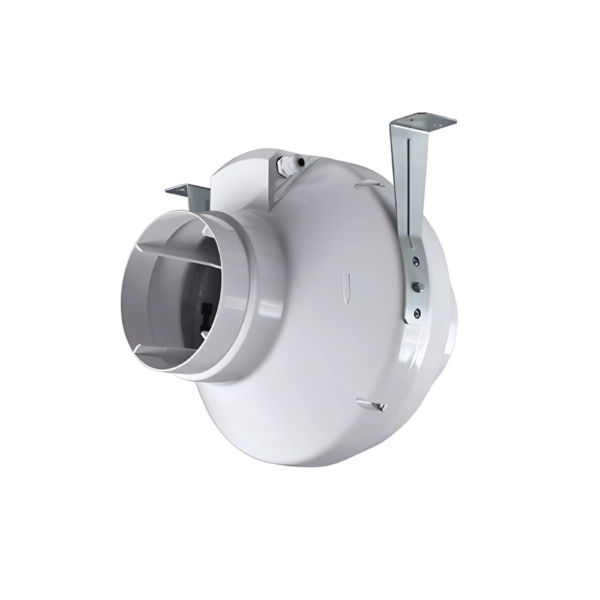

The Fanco VK Plastic 100 Inline fan is a quality in line fan that is normally ducted and may be used for exhaust, air transfer and other applications.
The Fanco VK Plastic Inline fan casing is made of high quality durable ABS plastic. The VK inlnie fan is also equipped with a waterproof terminal box. The corrosion resistant plastic casing makes this centrifugal inline fan perfect for installation in humid premises such as bathrooms, kitchens etc.
It is available in 3 sizes (100mm, 150mm and 200mm) and is a long life, continuous rated motor with an IP X 4 rating. This inline fan is the 100mm model, which is compatible with 100mm ducting. The package includes mounting brackets, which make installation easy and convenient.
| Manufacturer | Fanco |
|---|---|
| Model Number | VK 100 |
| Material | Plastic |
| Capacity (m3/hr) | 250 m3/hr |
| Capacity (L/S) | 69.44 L/S |
| Motor Type | Centrifugal |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 16.6 m3 |
| Noise Level | 46 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation | This fan requires hardwiring by an electrician |
| Duct Size | 100mm |
| Motor Power (Wattage) | 80w |
| Motor RPM | 2820 |
| Max Temperature of Transferred Air | 55 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
2 reviews for VK Centrifugal Inline Fan 100mm
Only logged in customers who have purchased this product may leave a review.
You may also like…
Stephen –
Great air movement a bit louder than I would have liked.
Matthew Fritsch (verified owner) –
