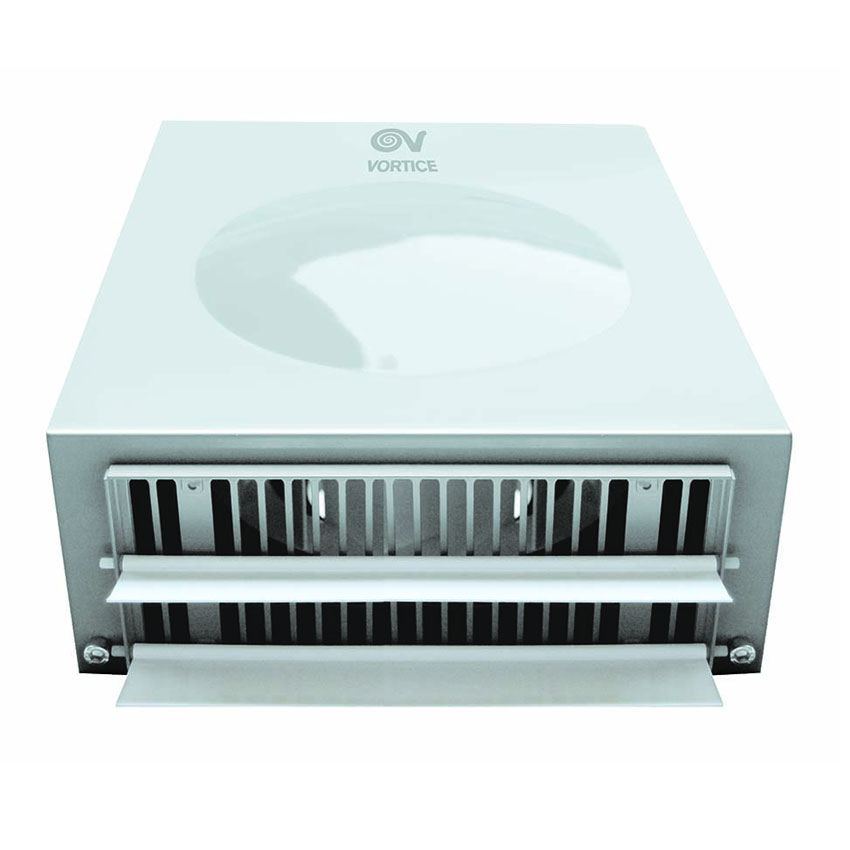

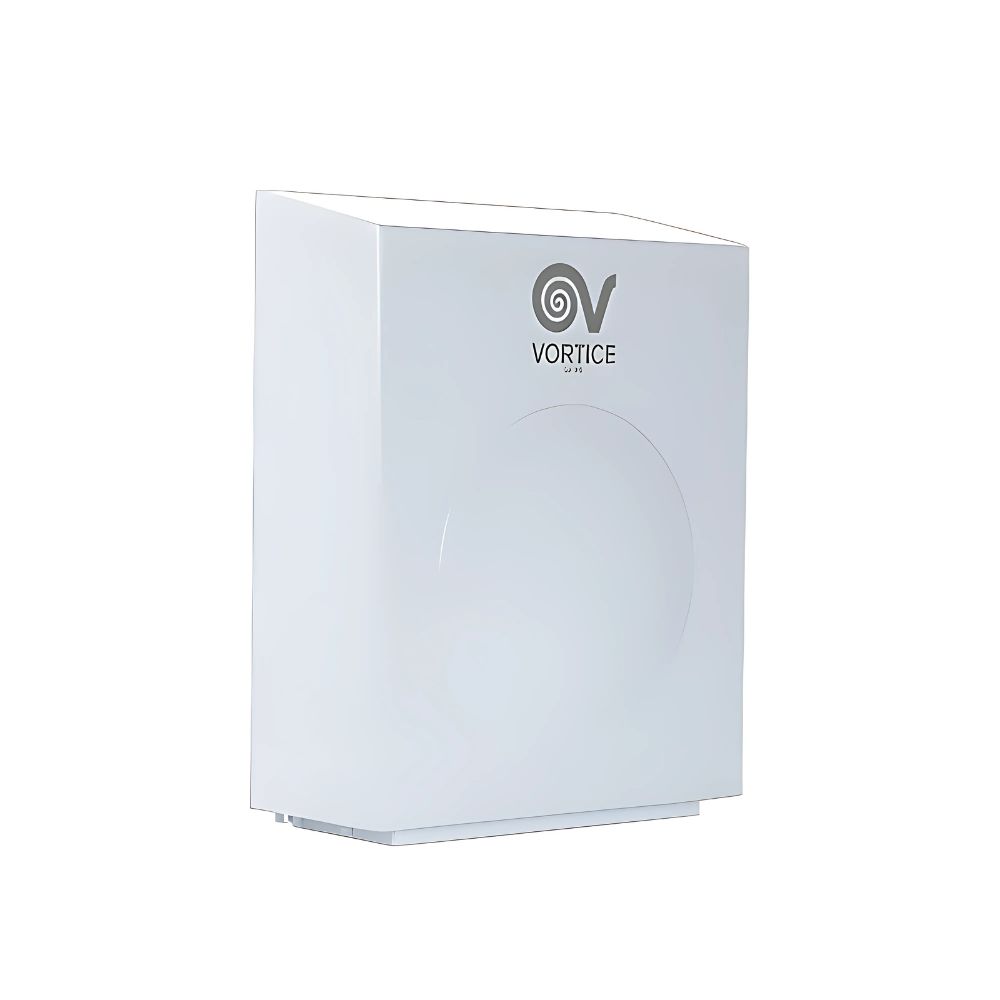

Vortice CA External Centrifugal Fan 200mm
IN STOCK | Typically dispatches within 3 business days
Original price was: $779.00.$729.00Current price is: $729.00.
Capacity: 613 m3/hr (170.3 l/s)
Motor Type: Centrifugal
Hole Size: 197mm
Ductable: Yes (200mm duct diameter)
View full technical specs further down the page
The Vortice CA is a high quality centrifugal wall fan designed for external wall mounting. The fan has a high quality AC motor with inbuilt thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller. View more technical information below or click on the red pdf button to download a detailed spec sheet.
This external centrifugal fan can be an alternative option in the case that an inline fan cannot be installed due to lack of access, where the performance of an inline is required.
Vortice CA 200mm Specifications
Vortice Part Number: CA 200 WE D | Code 16095
- P04 pressed steel outer enclosure with polyester paint finish, resistant to atmospheric agents.
- Nominal diameter 200 mm.
- AC motor of external rotor type with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller.
- IPX5 Rated
- Minimum air flow 570 m3/h (73.6 L/S)
- Maximum air flow 613 m3/h (170.3 L/S).
| Manufacturer | Vortice |
|---|---|
| Model Number | 16095 |
| Colour | Grey |
| Material | Metal |
| Hole Size | 197mm |
| Capacity (m3/hr) | 613 m3/hr |
| Capacity (L/S) | 170.3 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 40 m3 |
| Motor Power (Wattage) | 88w |
| Noise Level | 52.5 dB(A) |
| IP Rating | IPX5 |
| Max Temperature of Transferred Air | 55 °C |
| Voltage | 230 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | External Wall |
| Includes Backdraft Shutter | No |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 200mm |
| Motor Type | Centrifugal |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
