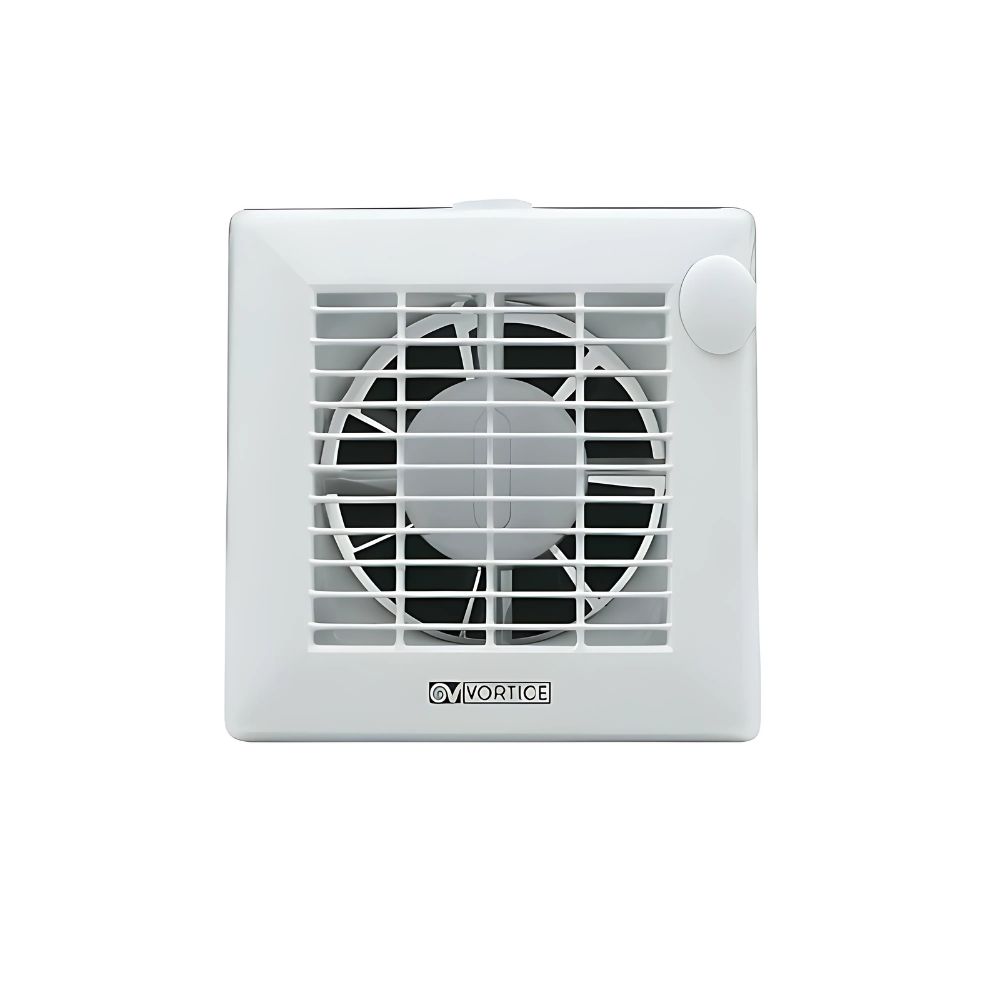

Vortice Punto Ceiling / Wall Fan 100mm – Auto Shutters + Timer
Original price was: $199.00.$149.00Current price is: $149.00.
Pre-Order Product: ETA Early Feb
Capacity: 90 m3/hr (25 l/s)
Hole (Cutout) Size:99mm Round
Face Size: 159mm Square
Ductable: Yes (100mm duct diameter)
View full technical specs further down the page
The Italian made Punto is available in 100mm, 120mm and 150mm sizes. Suitable for wall or ceiling installation. If you wish to install the fan in a ceiling you will need to purchase the ceiling mount kit listed below. Its made of soft rubber and is designed to maintain the IP rating of the fan. This model comes with automatic shutters and a timer that is adjustable from 3-20minutes. The shutters automatically open and close slowly when the unit is operated.
| Hole Size | 99mm |
|---|---|
| Capacity (m3/hr) | 90 m3/hr |
| Manufacturer | Vortice |
| Model Number | Punto 100 |
| Colour | White |
| Material | Plastic |
| Capacity (L/S) | 25 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 6 m3 |
| Motor Power (Wattage) | 18w |
| Motor Height | 53mm |
| Noise Level | No Figures Published |
| IP Rating | IPX4 |
| Voltage | 240 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling or Wall |
| Includes Backdraft Shutter | No |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 100mm |
| Warranty | Vortice – The manufacturer offers a 2 year replacement warranty (conditions apply). |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
