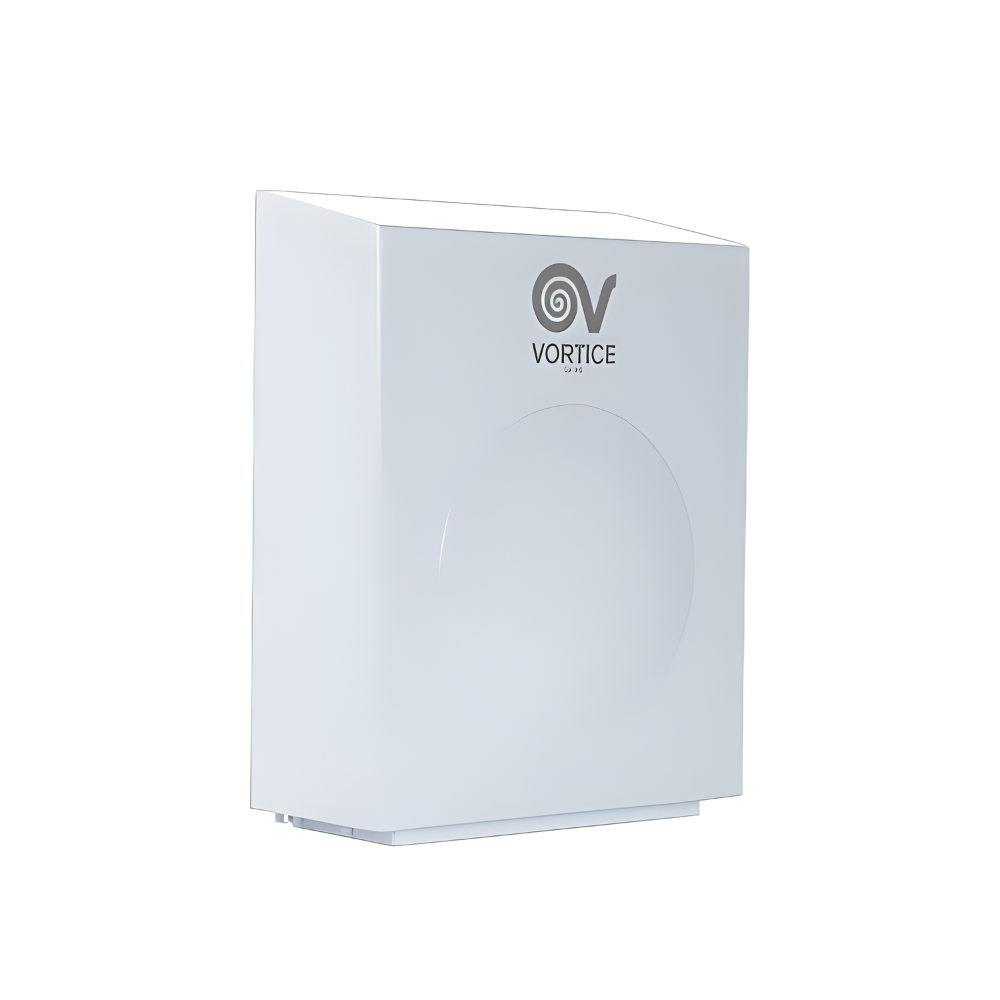

Vortice CA External Centrifugal Fan 150mm
IN STOCK | Typically dispatches within 3 business days
Original price was: $699.00.$629.00Current price is: $629.00.
Capacity: 530 m3/hr (147.2 l/s)
Hole (Cutout) Size: 147mm
Face Size: 430 x 360mm
Motor Type: Centrifugal
Ductable: Yes
View full technical specs further down the page
The Vortice CA is a high quality centrifugal wall fan designed for external wall mounting. The fan has a high quality AC motor with inbuilt thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller. This external centrifugal fan can be an alternative option in the case that an inline fan cannot be installed due to lack of access, where the performance of an inline is required. View more technical information below or click on the red pdf button to download a detailed spec sheet.
Vortice CA 150mm Specifications
This Vortice External Wall Mounted Centrifugal Fan is ideal for kitchens, bathrooms, storage areas, cellars, bars and shops. It is a solution suitable for those spaces where more than one room requires centralised extraction. This fan has a steel housing and utilises long-life polyester paint.
Vortice Part Number: CA 150 WE D | Code 16096
- P04 pressed steel outer enclosure with polyester paint finish, resistant to atmospheric agents.
- Nominal diameter 150 mm.
- AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward centrifugal impeller.
- IPX5 Rated
- Minimum air flow 250 m3/h (69.4 L/S).
- Maximum air flow 530 m3/h (147.2 L/S).
| Manufacturer | Allvent |
|---|---|
| Model Number | CA 150 WE D |
| Colour | White |
| Material | Metal |
| Hole Size | 147mm |
| Capacity (m3/hr) | 530 m3/hr |
| Capacity (L/S) | 147.22 l/s |
| Motor Power (Wattage) | 87w |
| Noise Level | 53 dB(A) |
| IP Rating | IPX5 |
| Voltage | 220 – 240 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Wall |
| Includes Backdraft Shutter | No |
| Ductable? | Ductable |
| Duct Size | 150mm |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply). |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Capacity | High (over 480m3/hr) |
