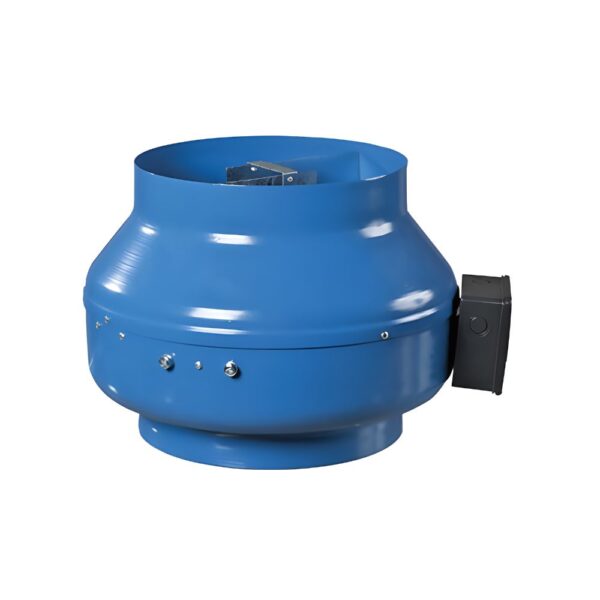

VKM Centrifugal Fan 200mm
Original price was: $439.00.$389.00Current price is: $389.00.
Pre-Order Product: ETA Early Dec
Capacity: 1100 m3/hr (305.55 l/s)
Motor Type: Centrifugal
Ductable: Yes (200mm duct diameter)
View full technical specs further down the page
A quality in line fan that is normally ducted and may be used for exhaust, air transfer and other applications.
The fan casing is made of steel with a polymeric coating – a superior structure to plastic models.
It is available in 6 sizes, and is a long life, continuous rated motor with an IP X 4 rating. The package includes mounting brackets (click on the ‘dimensions’ tab to view a picture of the mounting bracket).
Please Note: If you wish to simply plug the fan into a standard powerpoint you can add the ‘flex and plug’ accessory to your order which is listed below. A member of our technical team will install this to the fan. Please also be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed.
| Manufacturer | Fanco |
|---|---|
| Model Number | VKM 200 |
| Material | Metal |
| Capacity (m3/hr) | 1100 m3/hr |
| Capacity (L/S) | 305.55 L/S |
| Motor Type | Centrifugal |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 73.3 m3 |
| Noise Level | 51 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation | This fan requires hardwiring by an electrician |
| Duct Size | 200mm |
| Motor Power (Wattage) | 193w |
| Motor RPM | 2780 |
| Max Temperature of Transferred Air | 45 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
